Page 1 - Waterjet

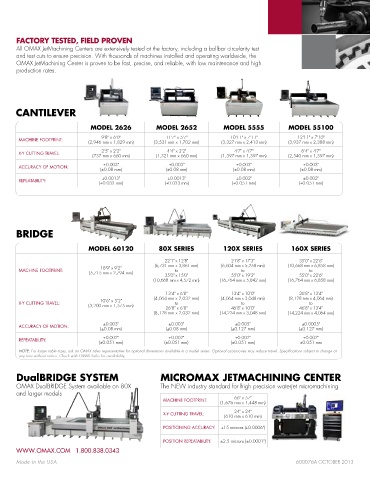

FACTORY TESTED, FIELD PROVEN
All OMAX JetMachining Centers are extensively tested at the factory, including a ballbar circularity test
and test cuts to ensure precision. With thousands of machines installed and operating worldwide, the
OMAX JetMachining Center is proven to be fast, precise, and reliable, with low maintenance and high
production rates.

CANTILEVER

MODEL 2626 MODEL 2652 MODEL 5555 MODEL 55100
9'8" x 6'0" 11'7" x 5'7" 10'11" x 7'11" 12'11" x 7'10"
MACHINE FOOTPRINT:
(2,946 mm x 1,829 mm) (3,531 mm x 1,702 mm) (3,327 mm x 2,413 mm) (3,937 mm x 2,388 mm)
2'5" x 2'2" 4'4" x 2'2" 4'7" x 4'7" 8'4" x 4'7"
X-Y CUTTING TRAVEL:
(737 mm x 660 mm) (1,321 mm x 660 mm) (1,397 mm x 1,397 mm) (2,540 mm x 1,397 mm)
±0.003" ±0.003" ±0.003" ±0.003"
ACCURACY OF MOTION:
(±0.08 mm) (±0.08 mm) (±0.08 mm) (±0.08 mm)
±0.0013" ±0.0013" ±0.002" ±0.002"
REPEATABILITY:
(±0.033 mm) (±0.033 mm) (±0.051 mm) (±0.051 mm)

BRIDGE

MODEL 60120 80X SERIES 120X SERIES 160X SERIES

22'1" x 12'8" 21'8" x 17'3" 35'0" x 22'6"
(6,731 mm x 3,861 mm) (6,604 mm x 5,258 mm) (10,668 mm x 6,858 mm)
18'9" x 9'2"
MACHINE FOOTPRINT: to to to
(5,715 mm x 2,794 mm)
35'0" x 15'0" 55'0" x 19'2" 55'0" x 22'6"
(10,668 mm x 4,572 mm) (16,764 mm x 5,842 mm) (16,764 mm x 6,858 mm)
13'4" x 6'8" 13'4" x 10'0" 26'8" x 13'4"
(4,064 mm x 2,032 mm) (4,064 mm x 3,048 mm) (8,128 mm x 4,064 mm)
10'6" x 5'2"
X-Y CUTTING TRAVEL: to to to
(3,200 mm x 1,575 mm)
26'8" x 6'8" 46'8" x 10'0" 46'8" x 13'4"
(8,128 mm x 2,032 mm) (14,224 mm x 3,048 mm) (14,224 mm x 4,064 mm)
±0.003" ±0.003" ±0.005" ±0.0005"
ACCURACY OF MOTION:
(±0.08 mm) (±0.08 mm) (±0.127 mm) (±0.127 mm)
REPEATABILITY: ±0.002" ±0.002" ±0.002" ±0.002"
(±0.051 mm) (±0.051 mm) (±0.051 mm) ±0.051 mm
NOTE: For larger table sizes, ask an OMAX sales representative for optional dimensions available in a model series. Optional accessories may reduce travel. Specifications subject to change at
any time without notice. Check with OMAX Sales for availability.

DualBRIDGE SYSTEM MICROMAX JETMACHINING CENTER

OMAX DualBRIDGE System available on 80X The NEW industry standard for high precision waterjet micromachining
and larger models
MACHINE FOOTPRINT: 66" x 57"
(1,676 mm x 1,448 mm)
X-Y CUTTING TRAVEL: 24" x 24"
(610 mm x 610 mm)
POSITIONING ACCURACY: ±15 microns (±0.0006")
POSITION REPEATABILITY: ±2.5 microns (±0.0001")
WWW.OMAX.COM 1.800.838.0343

Made in the USA 600076A OCTOBER 2013
