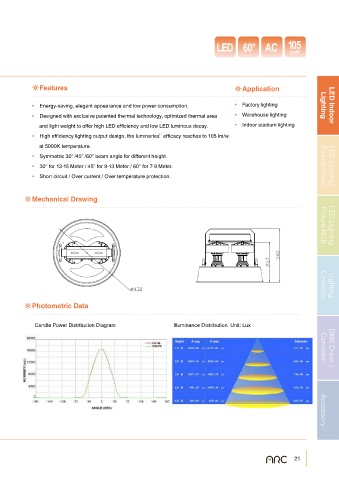

Page 22 - ARC KATALOG

LED 60° AC 105
lm/W

Features Application

• Energy-saving, elegant appearance and low power consumption. • Factory lighting Lighting LED Indoor

• Designed with exclusive patented thermal technology, optimized thermal area • Warehouse lighting
and light weight to offer high LED ef ciency and low LED luminous decay. • Indoor stadium lighting

• High ef ciency lighting output design, the luminaries§ef cacy reaches to 105 lm/w
at 5000K temperature.

• Symmetric 30° /45° /60° beam angle for different height.
• 30° for 13-15 Meter / 45° for 9-13 Meter / 60° for 7-9 Meter. Fixture-White LED Lighting
• Short circuit / Over current / Over temperature protection.

Mechanical Drawing Fixture-RGB LED Lighting

Photometric Data Controller Lighting

Candle Power Distribution Diagram Illuminance Distribution Unit: Lux Converter DMX Driver /
