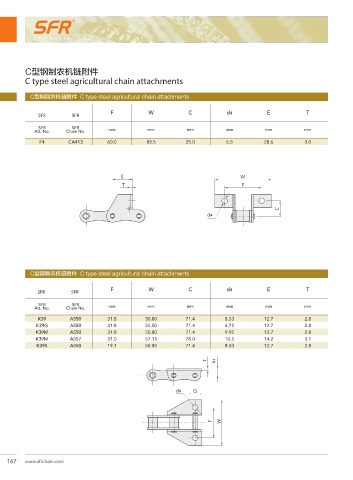

Page 184 - SFR Chain Catalogue v.3.1

C型钢制农机链附件
C type steel agricultural chain attachments

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ F W C d4 E T
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm mm
F4 CA413 60.0 83.5 25.0 6.5 28.6 3.0

E W
T F

C
d4

C型钢制农机链附件 C type steel agricultural chain attachments

ڸࡱݼ ৽ݼ F W C d4 E T
SFR SFR

SFR SFR
Att. No. Chain No. mm mm mm mm mm mm
K39 A550 31.8 50.80 71.4 8.33 12.7 2.8
K39G A550 31.8 54.00 71.4 6.75 12.7 2.8
K39M A550 31.8 50.80 71.4 9.92 12.7 2.8
K39M A557 31.0 57.15 78.0 10.5 14.2 3.1
K39S A550 19.1 50.80 71.4 8.33 12.7 2.8

T h4

d4 G

F W

167 www.sfrchain.com
