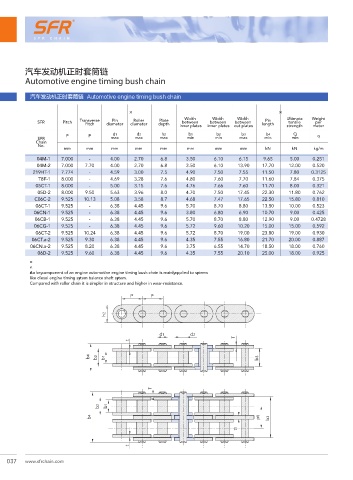

Page 54 - SFR Chain Catalogue v.3.1

汽车发动机正时套筒链
Automotive engine timing bush chain

汽车发动机正时套筒链 Automotive engine timing bush chain

৽ݼ ࢫए ஆए ཧᇠᆰࣥ ݏሰᆰࣥ ৽ϰۚ؇ ଽࢫଽॺ ଽࢫଽॺ ຓࢫଽॺ ཧᇠӉ؇ ࠞཋঘഥᄛހ ૄ૜Ӊᇗ
Width
Width
Width
Plate
Roller
Pin
Pin
between
between
tensile
SFR Pitch Transverse diameter diameter depth inner plates inner plates out plates length Ultimate Weight
between
per
Pitch
meter
strength
P P d1 d2 h2 b1 b2 b3 b4 Q q
SFR max max max min min max min min
Chain
No.
mm mm mm mm mm mm mm mm kN kN kg/m
04M-1 7.000 - 4.00 2.70 6.8 3.50 6.10 6.15 9.65 5.00 0.251
04M-2 7.000 7.70 4.00 2.70 6.8 3.50 6.10 13.90 17.70 12.00 0.520
219HT-1 7.774 - 4.59 3.00 7.5 4.90 7.50 7.55 11.50 7.80 0.3125
T8F-1 8.000 - 4.69 3.28 7.6 4.80 7.60 7.70 11.60 7.84 0.375
05CT-1 8.000 - 5.00 3.15 7.6 4.76 7.66 7.60 11.70 8.00 0.321
05D-2 8.000 9.50 5.63 3.96 8.0 4.70 7.50 17.45 22.30 11.80 0.762
C06C-2 9.525 10.13 5.08 3.58 8.7 4.68 7.47 17.65 22.50 15.80 0.810
06CT-1 9.525 - 6.38 4.45 9.6 5.70 8.70 8.80 13.50 10.00 0.523
06CN-1 9.525 - 6.38 4.45 9.6 3.80 6.80 6.90 10.70 9.00 0.425
06CB-1 9.525 - 6.38 4.45 9.6 5.70 8.70 8.80 12.90 9.00 0.4728
06CG-1 9.525 - 6.38 4.45 9.6 5.72 9.60 10.20 15.00 15.00 0.592
06CT-2 9.525 10.24 6.38 4.45 9.6 5.72 8.70 19.00 23.80 19.00 0.930
06CT.a-2 9.525 9.30 6.38 4.45 9.6 4.35 7.55 16.80 21.70 20.00 0.887
06CN.a-2 9.525 8.20 6.38 4.45 9.6 3.75 6.55 14.70 18.50 18.00 0.760
06D-2 9.525 9.60 6.38 4.45 9.6 4.35 7.55 20.10 25.00 18.00 0.925
µḤచӚؿ׮ࠏᆞൈส๣৽ᇶေႋႨႿҸႲؿ׮ࠏᆞൈ༢๤aḤ௜ޙᇠ༢๤đ൞ؿ׮ࠏܱ࡯֥ਬ҆ࡱđ
ḤḤḤḤაݏሰ৽ཌྷбđࢲ઼ࡥֆđऎСࢠ֥ۚଈ෥ྟିb
µḤ͎΀ḤͮḤ͸ͲΆḤͰͼͺͽͼͻͲͻ΁ḤͼͳḤͮͻḤͲͻʹͶͻͲ̹Ḥͮ΂΁ͼͺͼ΁Ͷ΃ͲḤͲͻʹͶͻͲḤ΁ͶͺͶͻʹḤͯ΂΀͵ḤͰ͵ͮͶͻḤͶ΀ḤͺͮͶͻ͹ΆḤͮͽͽ͹ͶͲͱḤ΁ͼḤ΀Ά΀΁Ͳͺ΀̹Ḥ
ḤḤḤḤ͹Ͷ͸ͲḤͱͶͲ΀Ͳ͹ḤͲͻʹͶͻͲḤ΁ͶͺͶͻʹḤ΀Ά΀΁Ͳͺ̹Ḥͯͮ͹ͮͻͰͲḤ΀͵ͮͳ΁Ḥ΀Ά΀΁Ͳͺ̻Ḥ
ḤḤḤḤ͐ͼͺͽͮͿͲͱḤ΄Ͷ΁͵ḤͿͼ͹͹ͲͿḤͰ͵ͮͶͻ̹ḤͶ΁ḤͶ΀Ḥ΀Ͷͺͽ͹ͲͿḤͶͻḤ΀΁Ϳ΂Ͱ΁΂ͿͲḤͮͻͱḤ͵Ͷʹ͵ͲͿḤͶͻḤ΄ͲͮͿ̺ͿͲ΀Ͷ΀΁ͮͻͰͲ̻Ḥ
P P
h2

d1 d2
T
t
b4 b2 b1 b3

T

b2 b1
b4 pt b3

t1

t
037 www.sfrchain.com
