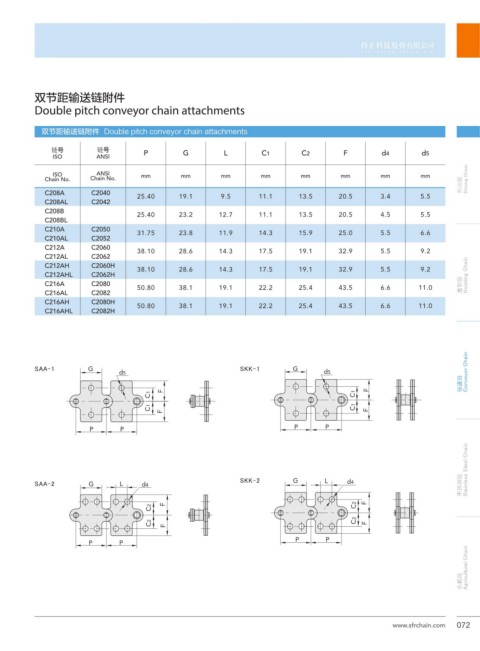

双节距输送链附件
Double pitch conveyor chain attachments

双节距输送链附件 Double pitch conveyor chain attachments

৽ݼ ৽ݼ Ḥ P G L C1 C2 F d4 d5
Ḥ
ISO ANSI
ISO ANSI mm mm mm mm mm mm mm mm
Chain No. Chain No. Ԯ׮৽ ͑ͿͶ΃ͶͻʹḤ͐͵ͮͶͻ
C208A C2040 25.40 19.1 9.5 11.1 13.5 20.5 3.4 5.5
C208AL C2042
C208B 25.40 23.2 12.7 11.1 13.5 20.5 4.5 5.5
C208BL
C210A C2050 31.75 23.8 11.9 14.3 15.9 25.0 5.5 6.6
C210AL C2052
C212A C2060 38.10 28.6 14.3 17.5 19.1 32.9 5.5 9.2
C212AL C2062
C212AH C2060H 38.10 28.6 14.3 17.5 19.1 32.9 5.5 9.2
C212AHL C2062H ͕ͼͶ΀΁ͶͻʹḤ͐͵ͮͶͻ
C216A C2080 50.80 38.1 19.1 22.2 25.4 43.5 6.6 11.0 ှႄ৽Ḥ
C216AL C2082
C216AH C2080H 50.80 38.1 19.1 22.2 25.4 43.5 6.6 11.0
C216AHL C2082H

͎͎̺̾͠ G ̺̾͘͘͠ G
d5 d5 ͐ͼͻ΃ͲΆͼͿḤ͐͵ͮͶͻ
ൻෂ৽
C1 F C1 F
C1 F C1 F

P P P P

͠΁ͮͶͻ͹Ͳ΀΀Ḥ͠΁ͲͲ͹Ḥ͐͵ͮͶͻ

҂ྭۑ৽
̺̿͘͘͠ G L d4
͎͎̺̿͠ G L d4
C2 F C2 F

C2 F C2 F

P P P P
͎ʹͿͶͰ΂͹΁΂Ϳͮ͹Ḥ͐͵ͮͶͻ

୪ࠏ৽

www.sfrchain.com 072
