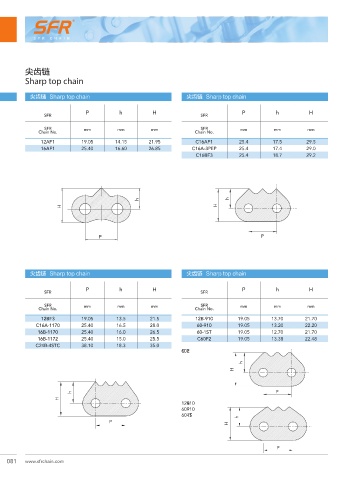

尖齿链
Sharp top chain

尖齿链 Sharp top chain 尖齿链 Sharp top chain

৽ݼ P h H ৽ݼ P h H
SFR SFR
SFR mm mm mm SFR mm mm mm
Chain No. Chain No.
12AF1 19.05 14.15 21.95 C16AF1 25.4 17.5 29.5
16AF1 25.40 16.60 26.85 C16A-3PEP 25.4 17.4 29.0
C16BF3 25.4 18.7 29.2

h h
H H

P P

尖齿链 Sharp top chain 尖齿链 Sharp top chain

৽ݼ P h H ৽ݼ P h H
SFR SFR

SFR mm mm mm SFR mm mm mm
Chain No. Chain No.
12BF3 19.05 13.5 21.5 12B-910 19.05 13.70 21.70
C16A-1170 25.40 16.5 28.0 60-910 19.05 13.20 22.20
16B-1170 25.40 16.0 26.5 60-1ST 19.05 12.70 21.70
16B-1172 25.40 15.0 25.5 C60F2 19.05 13.38 22.48
C24B-4STC 38.10 18.3 35.0
͓͐̓̽̿

h
H

h P
H
̾̿͏̺͆̾̽
̺̓̽͆̾̽
̺̓̽̾͠͡
h
P
H

P
081 www.sfrchain.com
