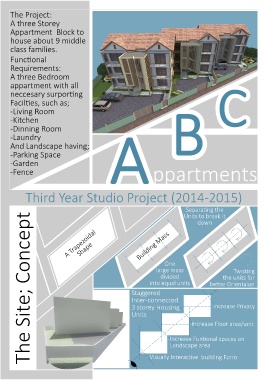

The Project:
A three Storey
Appartment Block to
house about 9 middle
class families.
Func onal
Requirements:
A three Bedroom
appartment with all
neccesary surpor ng
Facil es, such as;
-Living Room
-Kitchen
-Dinning Room
-Laundry
And Landscape having;
-Parking Space
-Garden
ppartments
-Fence
Third Year Studio Project (2014-2015)
Separa ng the
The Site; Concept
Units to break it
down
A Trapezoidal Building Mass
Shape
One
large mass Twis ng
divided the units for
into equal units be8er Orientaion
Staggered
Inter-connected
3 storey Housing -Increase Privacy
Units
-Increase Floor area/unit
-Increase Fun onal spaces on
Landscape area
- Visually Interac ve building Form
