SPM Chemistry A xplosive Module (Chemistry A Ticket For “U” ) GREEN ZONE [GZ]
+

Paper 3 / Kertas 3
1 hour 30 minutes / 1 jam 30 minit

Answer all questions
Jawab semua soalan

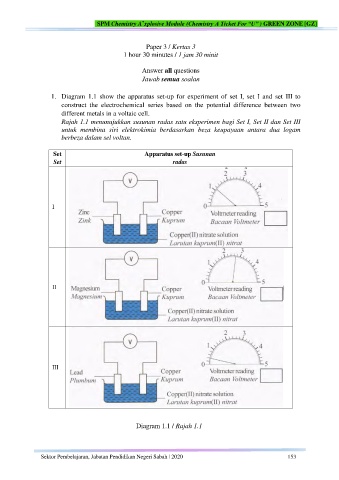

1. Diagram 1.1 show the apparatus set-up for experiment of set I, set I and set III to
construct the electrochemical series based on the potential difference between two
different metals in a voltaic cell.
Rajah 1.1 menunujukkan susunan radas satu eksperimen bagi Set I, Set II dan Set III
untuk membina siri elektrokimia berdasarkan beza keupayaan antara dua logam
berbeza dalam sel voltan.

Set Apparatus set-up Susunan
Set radas

I

II

III

Diagram 1.1 / Rajah 1.1

Sektor Pembelajaran, Jabatan Pendidikan Negeri Sabah | 2020 153
