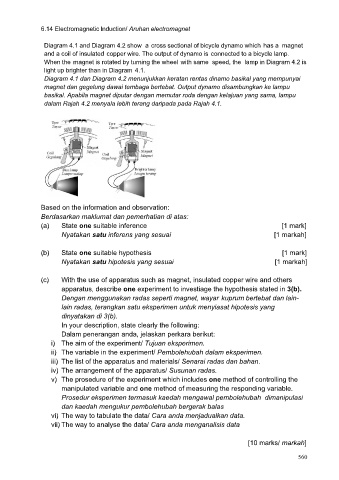

6.14 Electromagnetic Induction/ Aruhan electromagnet

Diagram 4.1 and Diagram 4.2 show a cross sectional of bicycle dynamo which has a magnet
and a coil of insulated copper wire. The output of dynamo is connected to a bicycle lamp.
When the magnet is rotated by turning the wheel with same speed, the lamp in Diagram 4.2 is
light up brighter than in Diagram 4.1.
Diagram 4.1 dan Diagram 4.2 menunjukkan keratan rentas dinamo basikal yang mempunyai
magnet dan gegelung dawai tembaga bertebat. Output dynamo disambungkan ke lampu
basikal. Apabila magnet diputar dengan memutar roda dengan kelajuan yang sama, lampu
dalam Rajah 4.2 menyala lebih terang daripada pada Rajah 4.1.

Based on the information and observation:
Berdasarkan maklumat dan pemerhatian di atas:
(a) State one suitable inference [1 mark]
Nyatakan satu inferens yang sesuai [1 markah]

(b) State one suitable hypothesis [1 mark]
Nyatakan satu hipotesis yang sesuai [1 markah]

(c) With the use of apparatus such as magnet, insulated copper wire and others
apparatus, describe one experiment to investiage the hypothesis stated in 3(b).
Dengan menggunakan radas seperti magnet, wayar kuprum bertebat dan lain-
lain radas, terangkan satu eksperimen untuk menyiasat hipotesis yang
dinyatakan di 3(b).
In your description, state clearly the following:
Dalam penerangan anda, jelaskan perkara berikut:
i) The aim of the experiment/ Tujuan eksperimen.
ii) The variable in the experiment/ Pembolehubah dalam eksperimen.
iii) The list of the apparatus and materials/ Senarai radas dan bahan.
iv) The arrangement of the apparatus/ Susunan radas.
v) The prosedure of the experiment which includes one method of controlling the
manipulated variable and one method of measuring the responding variable.
Prosedur eksperimen termasuk kaedah mengawal pembolehubah dimanipulasi
dan kaedah mengukur pembolehubah bergerak balas
vi) The way to tabulate the data/ Cara anda menjadualkan data.
vii) The way to analyse the data/ Cara anda menganalisis data

[10 marks/ markah]

560
