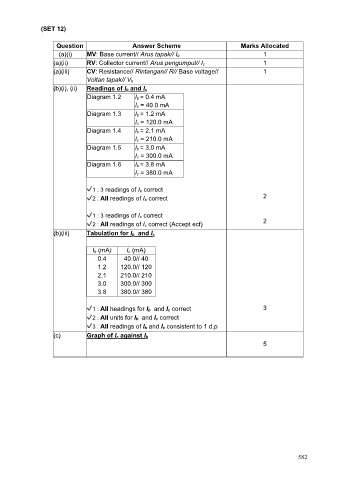

(SET 12)

Question Answer Scheme Marks Allocated
(a)(i) MV: Base current// Arus tapak// Ib 1
(a)(ii) RV: Collector current// Arus pengumpul// Ic 1
(a)(iii) CV: Resistance// Rintangan// R// Base voltage// 1
Voltan tapak// Vb
(b)(i), (ii) Readings of Ib and Ic
Diagram 1.2 Ib = 0.4 mA
Ic = 40.0 mA
Diagram 1.3 Ib = 1.2 mA
Ic = 120.0 mA
Diagram 1.4 Ib = 2.1 mA
Ic = 210.0 mA
Diagram 1.5 Ib = 3.0 mA
Ic = 300.0 mA
Diagram 1.6 Ib = 3.8 mA
Ic = 380.0 mA

✔1 : 3 readings of Ib correct
✔2 : All readings of Ib correct 2

✔1 : 3 readings of Ic correct
✔2 : All readings of Ic correct (Accept ecf) 2
(b)(iii) Tabulation for Ib and Ic

Ib (mA) Ic (mA)
0.4 40.0// 40
1.2 120.0// 120
2.1 210.0// 210
3.0 300.0// 300
3.8 380.0// 380

✔1 : All headings for Ib and Ic correct 3
✔2 : All units for Ib and Ic correct
✔3 : All readings of Ib and Ic consistent to 1 d.p
(c) Graph of Ic against Ib
5
