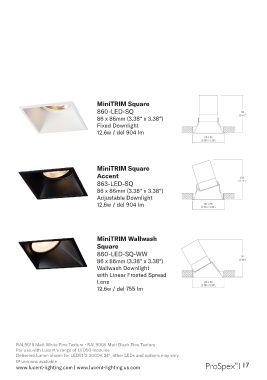

Page 17 - 2018 Brochure 2

®
ProSpex MiniTRIM

MiniTRIM Square
Actual Size 860-LED-SQ
86 x 86mm (3.38“ x 3.38“)
Fixed Downlight
12.6w / del 904 lm

MiniTRIM MiniTRIM Square
860-LED Accent
86mm (3.38“) Ø 863-LED-SQ
Fixed Downlight 86 x 86mm (3.38“ x 3.38“)
12.6w / del 945 lm Adjustable Downlight
12.6w / del 904 lm

MiniTRIM Accent MiniTRIM Wallwash
863-LED Square
86mm (3.38“) Ø 860-LED-SQ-WW
Adjustable Downlight 86 x 86mm (3.38“ x 3.38“)
12.6w / del 945 lm Wallwash Downlight
with Linear Frosted Spread
Lens
12.6w / del 755 lm
MiniTRIM Wallwash
860-LED-WW
86mm (3.38“) Ø
Wallwash Downlight
with Linear Frosted Spread
Lens
12.6w / del 718 lm RAL9016 Matt White Fine Texture • RAL9005 Matt Black Fine Texture
For use with Lucent‘s range of LED50 modules
Delivered lumen shown for LED51/2 3000K 24°, other LEDs and options may vary
| 16 IP versions available | 17
www.lucent-lighting.com | www.lucent-lighting.us.com
