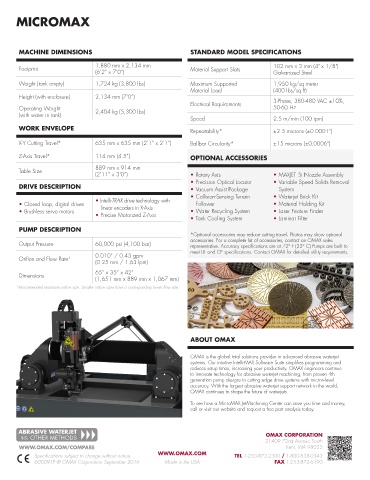

Page 4 - Waterjet

MICROMAX

MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS

1,880 mm x 2,134 mm 102 mm x 3 mm (4" x 1/8")
Footprint Material Support Slats
(6’2” x 7’0”) Galvanized Steel
Weight (tank empty) 1,724 kg (3,800 lbs) Maximum Supported 1,950 kg/sq meter
Material Load (400 lbs/sq ft)
Height (with enclosure) 2,134 mm (7’0”)
Electrical Requirements 3-Phase, 380-480 VAC ±10%,
Operating Weight 50-60 Hz
(with water in tank) 2,404 kg (5,300 lbs)
Speed 2.5 m/min (100 ipm)
WORK ENVELOPE
Repeatability* ±2.5 microns (±0.0001”)
X-Y Cutting Travel* 635 mm x 635 mm (2’1” x 2’1”) Ballbar Circularity* ±15 microns (±0.0006”)

Z-Axis Travel* 114 mm (4.5”) OPTIONAL ACCESSORIES
889 mm x 914 mm
Table Size
(2’11” x 3’0”) • Rotary Axis • MAXJET 5i Nozzle Assembly
• Precision Optical Locator • Variable Speed Solids Removal
DRIVE DESCRIPTION • Vacuum Assist Package System
• Collision-Sensing Terrain • Waterjet Brick Kit
• Intelli-TRAX drive technology with
• Closed loop, digital drives linear encoders in X-Axis Follower • Material Holding Kit
• Brushless servo motors • Water Recycling System • Laser Feature Finder
• Precise Motorized Z-Axis
• Tank Cooling System • Laminar Filter
PUMP DESCRIPTION
*Optional accessories may reduce cutting travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
Output Pressure 60,000 psi (4,100 bar) representative. Accuracy specifications are at 72° F (22° C) Pumps are built to
meet UL and CE specifications. Contact OMAX for detailed utility requirements.
0.010” / 0.43 gpm
Orifice and Flow Rate 1
(0.25 mm / 1.63 lpm)
65” x 35” x 42”
Dimensions
(1,651 mm x 889 mm x 1,067 mm)
1 Recommended maximum orifice size. Smaller orifice sizes have a corresponding lower flow rate.

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
reduces setup times, increasing your productivity. OMAX engineers continue
to innovate technology for abrasive waterjet machining, from proven 4th
generation pump designs to cutting edge drive systems with micron-level
accuracy. With the largest abrasive waterjet support network in the world,
OMAX continues to shape the future of waterjets.
To see how a MicroMAX JetMachining Center can save you time and money,
call or visit our website and request a free part analysis today.

ABRASIVE WATERJET
vs. OTHER METHODS OMAX CORPORATION
21409 72nd Avenue South
WWW.OMAX.COM/COMPARE Kent, WA 98032
Specifications subject to change without notice. WWW.OMAX.COM TEL 1-253-872-2300 / 1-800-838-0343
600091P © OMAX Corporation September 2016 Made in the USA FAX 1-253-872-6190
