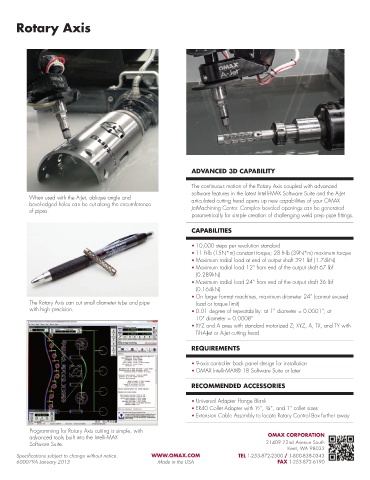

Rotary Axis
ADVANCED 3D CAPABILITY
The continuous motion of the Rotary Axis coupled with advanced
software features in the latest Intelli-MAX Software Suite and the A-Jet
When used with the A-Jet, oblique angle and
bevel-edged holes can be cut along the circumference articulated cutting head opens up new capabilities of your OMAX
of pipes. JetMachining Center. Complex beveled openings can be generated
parametrically for simple creation of challenging weld prep pipe fittings.
CAPABILITIES
• 10,000 steps per revolution standard
• 11 ft-lb (15N*m) constant torque; 28 ft-lb (39N*m) maximum torque
• Maximum radial load at end of output shaft 391 lbf (1.74kN)
• Maximum radial load 12” from end of the output shaft 67 lbf
(0.289kN)
• Maximum radial load 24” from end of the output shaft 36 lbf
(0.164kN)
• On larger format machines, maximum diameter 24” (cannot exceed
The Rotary Axis can cut small diameter tube and pipe load or torque limit)
with high precision. • 0.01 degree of repeatability: at 1” diameter = 0.0001”; at
10” diameter = 0.0008”
• XYZ and A axes with standard motorized Z; XYZ, A, TX, and TY with
Tilt-A-Jet or A-Jet cutting head
REQUIREMENTS
• 9-axis controller back panel design for installation
• OMAX Intelli-MAX® 18 Software Suite or later
RECOMMENDED ACCESSORIES
• Universal Adapter Flange Blank
• ER40 Collet Adapter with ½”, ¾”, and 1” collet sizes
• Extension Cable Assembly to locate Rotary Control Box further away
Programming for Rotary Axis cutting is simple, with
advanced tools built into the Intelli-MAX OMAX CORPORATION
Software Suite. 21409 72nd Avenue South
Kent, WA 98032
Specifications subject to change without notice. WWW.OMAX.COM TEL 1-253-872-2300 / 1-800-838-0343
600079A January 2013 Made in the USA FAX 1-253-872-6190
