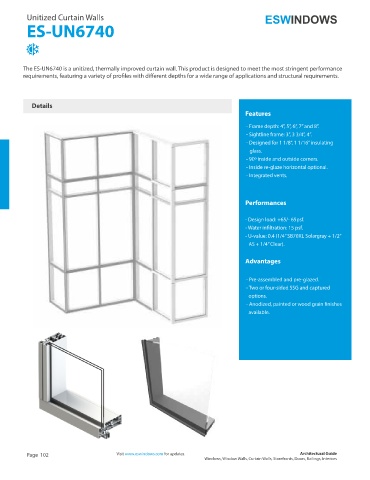

Unitized Curtain Walls
ES-UN6740

The ES-UN6740 is a unitized, thermally improved curtain wall. This product is designed to meet the most stringent performance
requirements, featuring a variety of profiles with different depths for a wide range of applications and structural requirements.

Details
Features

- Frame depth: 4”, 5”, 6”, 7” and 8”.
- Sightline frame: 3”, 3 3/4”, 4”.
- Designed for 1 1/8”, 1 1/16” insulating
--glass.
- 90º inside and outside corners.
- Inside re-glaze horizontal optional.
- Integrated vents.

Performances

- Design load: +65/- 65psf.
- Water infiltration: 15 psf.
- U-value: 0.4 (1/4” SB70XL Solargray + 1/2”
--AS + 1/4” Clear).

Advantages

- Pre-assembled and pre-glazed.
- Two or four-sided SSG and captured
options.
- Anodized, painted or wood grain finishes
available.
