Casement Windows

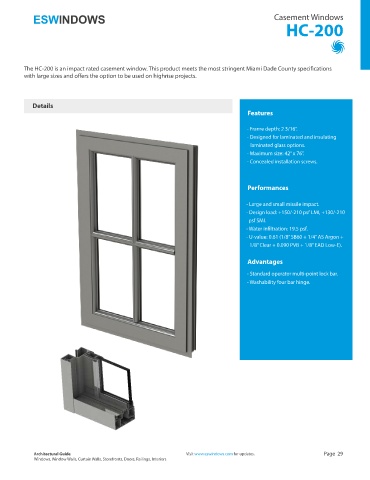

HC-200

The HC-200 is an impact rated casement window. This product meets the most stringent Miami Dade County specifications
with large sizes and offers the option to be used on highrise projects.

Details
Features

- Frame depth: 2 3/16”.
- Designed for laminated and insulating
--laminated glass options.
- Maximum size: 42” x 76”.
- Concealed installation screws.

Performances

- Large and small missile impact.
- Design load: +150/-210 psf LMI, +130/-210
psf SMI.
- Water infiltration: 19.5 psf.
- U-value: 0.61 (1/8” SB60 + 1/4” AS Argon +
--1/8” Clear + 0.090 PVB + 1/8” EAD Low-E).

Advantages

- Standard operator multi-point lock bar.
- Washability four bar hinge.
