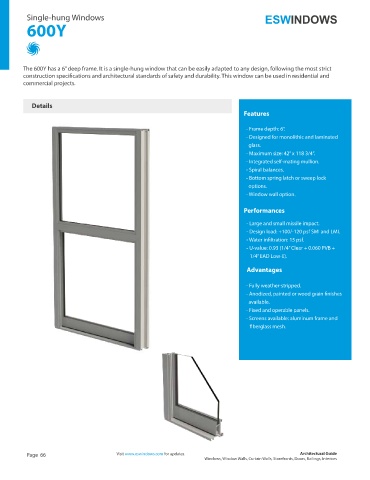

Single-hung Windows
600Y

The 600Y has a 6” deep frame. It is a single-hung window that can be easily adapted to any design, following the most strict
construction specifications and architectural standards of safety and durability. This window can be used in residential and
commercial projects.

Details
Features

- Frame depth: 6”.
- Designed for monolithic and laminated
glass.
- Maximum size: 42” x 118 3/4”.
- Integrated self-mating mullion.
- Spiral balances.
- Bottom spring latch or sweep lock
options.
- Window wall option.

Performances

- Large and small missile impact.
- Design load: +100/-120 psf SMI and LMI.
- Water infiltration: 15 psf.
- U-value: 0.93 (1/4” Clear + 0.060 PVB +
--1/4” EAD Low-E).

Advantages

- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Fixed and operable panels.
- Screens available: aluminum frame and
fiberglass mesh.
