103

Corrective Action None required.

Produces accurate waveform

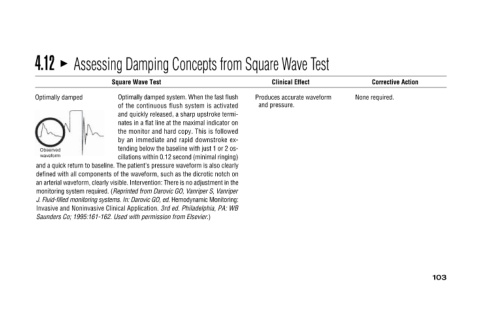

Assessing Damping Concepts from Square Wave Test
Clinical Effect and pressure.

Optimally damped system. When the fast flush of the continuous flush system is activated and quickly released, a sharp upstroke termi- nates in a flat line at the maximal indicator on the monitor and hard copy. This is followed by an immediate

Square Wave Test and a quick return to baseline. The patient’s pressure waveform is also clearly defined with all components of the waveform, such as the dicrotic notch on an arterial waveform, clearly visible. Intervention: There is no adjustm

Optimally damped
4.12 Observed waveform
