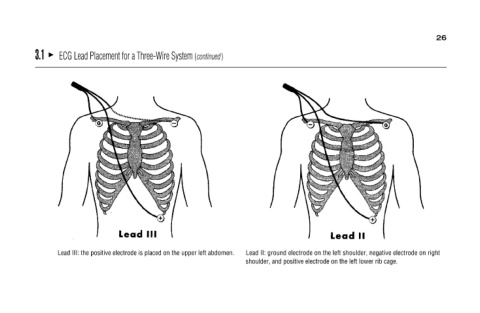

                                                        shoulder, and positive electrode on the left lower rib cage. Lead II: ground electrode on the left shoulder, negative electrode on right





















             ECG Lead Placement for a Three-Wire System (continued)  Lead III: the positive electrode is placed on the upper left abdomen.
