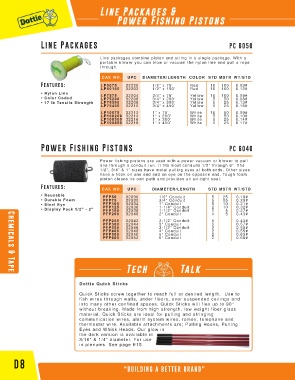

Page 100 - CAT31D

Line Packages &
Power Fishing Pistons

Line Packages PC 6050

Line packages combine piston and string in a single package. With a
portable blower you can blow or vacuum the nylon line and pull a rope
through.

CAT. NO. UPC DIAMETER/LENGTH COLOR STD MSTR WT/STD
Features: LP5075 32220 1/2” x 75’ Red 10 100 0.09#
LP50150 32202 1/2” x 150’ Red 10 100 0.12#
• Nylon Line LP7575 32204 3/4” x 75’ Yellow 10 100 0.09#
• Color Coded LP75200 32206 3/4” x 200’ Yellow 5 50 0.08#
• 17 lb Tensile Strength LP75300 32208 3/4” x 300’ Yellow 5 25 0.13#
LP75450 32210 3/4” x 450’ Yellow 5 25 0.18#
LP10075 32212 1” x 75’ White 10 50 0.09#
LP100200 32214 1” x 200’ White 5 50 0.10#
LP100300 32216 1” x 300’ White 5 25 0.14#
LP100450 32218 1” x 450’ White 5 25 0.17#

Power Fishing Pistons PC 6040

Power fishing pistons are used with a power vacuum or blower to pull
line through a conduit run. It fits most conduits 1/2” through 6”. The
1/2”, 3/4” & 1” sizes have metal pulling eyes at both ends. Other sizes
have a hook on one end and an eye on the opposite end. Tough foam
piston cleans its own path and provides an air-tight seal.
Features: CAT. NO. UPC DIAMETER/LENGTH STD MSTR WT/STD
• Reusable PFP50 32030 1/2” Conduit 5 25 0.19#
• Durable Foam PFP75 32032 3/4” Conduit 5 25 0.20#
• Steel Eye PFP100 32034 1” Conduit 5 10 0.21#
• Display Pack 1/2” - 2” PFP125 32036 1-1/4” Conduit 2 10 5 0.32#
32038
PFP150
0.27#
1
1-1/2” Conduit
PFP200 32040 2” Conduit 1 5 0.43#
PFP250 32042 2-1/2” Conduit 5 0.43#
PFP300 32044 3” Conduit 5 0.57#
PFP350 32046 3-1/2” Conduit 2 0.50#
PFP400 32048 4” Conduit 2 0.55#
PFP500 32050 5” Conduit 2 0.63#
PFP600 32052 6” Conduit 2 0.68#

Tech Talk
Chemicals & Tape

Dottie Quick Sticks

Quick Sticks screw together to reach full or desired length. Use to
fish wires through walls, under floors, over suspended ceilings and
into many other confined spaces. Quick Sticks will flex up to 90°
without breaking. Made from high strength, low weight fiber glass
material. Quick Sticks are ideal for pulling and stringing
communication wires, alarm system wires, romex, telephone and
thermostat wire. Available attachments are; Pulling Hooks, Pulling
Eyes and Whisk Heads. Our glow in
the dark version is available in
3/16” & 1/4” diameter. For use
in plenums. See page E15.

D8
“BUILDING A BETTER BRAND”
