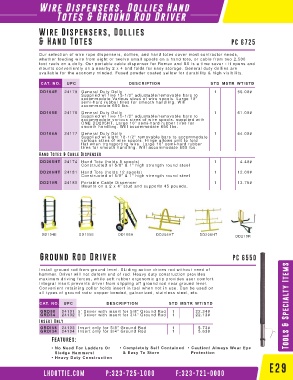

Page 141 - CAT31D

Wire Dispensers, Dollies Hand
Totes & Ground Rod Driver

Wire Dispensers, Dollies
& Hand Totes PC 6725

Our selection of wire rope dispensers, dollies, and hand totes cover most contractor needs,
whether feeding wire from eight or twelve small spools on a hand tote, or cable from two 2,500
foot reels on a dolly. Our portable cable dispenser for Romex and BX is a time saver - it opens and
mounts conveniently on a nearby 2 x 4 and folds for easy storage. General duty dollies are
available for the economy minded. Fused powder coated yellow for durability & high visibility.
CAT. NO. UPC DESCRIPTION STD MSTR WT/STD
DD104E 24179 General Duty Dolly 1 56.00#
Supplied w/ five 15-1/2” adjustable/removable bars to
accommodate Various sizes of wire spools. Large 10”
semi-hard rubber tires for smooth handling. Will
accommodate 650 lbs.
DD105E 24178 General Duty Dolly 1 61.00#
Supplied w/ five 15-1/2” adjustable/removable bars to
accommodate various sizes of wire spools. supplied with
ONE DD205HT. Large 10” semi-hard rubber tires for
smooth handling. Will accommodate 650 lbs.
DD106A 24177 General Duty Dolly 1 54.00#
Supplied w/ eight 18-1/2” removable bars to accommodate
various sizes of wire spools. Hinge allows unit to fold
flat when transporting wire. Large 10” semi-hard rubber
tires for smooth handling. Will accommodate 650 lbs.
Hand Totes & Cable Dispenser
DD205HT 24174 Hand Tote (holds 8 spools) 1 4.40#
Constructed of 5/8” & 1” high strength round steel

DD206HT 24181 Hand Tote (holds 12 spools) 1 12.00#
Constructed of 5/8” & 1” high strength round steel

DD210R 24180 Portable Cable Dispenser 1 13.75#
Mounts on a 2 x 4” stud and supports 45 pounds.

DD104E DD105E DD106A DD205HT DD206HT
DD210R

Ground Rod Driver PC 6550

Install ground rod from ground level. SLiding action drives rod without need of
hammer. Driver will not deform end of rod. Heavy duty construction provides
maximum driving forces, while soft rubber ergonomic grip provides user comfort.
Integral insert prevents driver from slipping off ground rod near ground level.
Convenient retaining collar holds insert in tool when not in use. Can be used on
all types of ground rods: copper bonded, galvanized, stainless steel, etc.
CAT. NO. UPC DESCRIPTION STD MSTR WT/STD Tools & Specialty Items

GRD58 24101 5’ Driver with insert for 5/8” Ground Rod 1 22.34#
GRD34 24102 5’ Driver with insert for 3/4” Ground Rod 1 22.13#
Insert Only
GRDI58 24103 Insert only for 5/8” Ground Rod 1 5.73#
GRDI34 24104 Insert only for 3/4” Ground Rod 1 5.63#
Features:

• No Need For Ladders Or • Completely Self Contained • Caution! Always Wear Eye
Sledge Hammers! & Easy To Store Protection
• Heavy Duty Construction
E29
