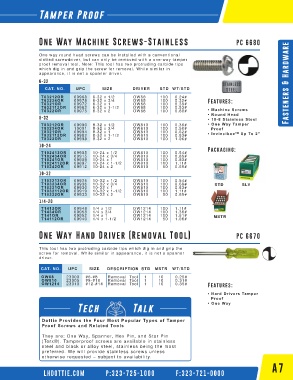

Page 15 - CAT31D

Tamper Proof

One Way Machine Screws-Stainless PC 6680

One way round head screws can be installed with a conventional
slotted screwdriver, but can only be removed with a one-way tamper
proof removal tool. Note: This tool has two protruding carbide tips
which dig in and grip the screw for removal. While similar in
appearance, it is not a spanner driver.
6-32 Fasteners & Hardware
CAT. NO. UPC SIZE DRIVER STD WT/STD
T63212OR 09968 6-32 x 1/2 OW68 100 0.24#
T63234OR 09978 6-32 x 3/4 OW68 100 0.32# Features:
T6321OR 09972 6-32 x 1 OW68 100 0.39#
T632112OR 09962 6-32 x 1-1/2 OW68 100 0.53#
T6322OR 09975 6-32 x 2 OW68 100 0.68# • Machine Screws
• Round Head
8-32 • 18-8 Stainless Steel
T83212OR 09990 8-32 x 1/2 OW810 100 0.39# • One Way Tamper
Fasteners & Hardware
T83234OR 10001 8-32 x 3/4 OW810 100 0.50# Proof
T8321OR 09994 8-32 x 1 OW810 100 0.62# TM
T832112OR 09982 8-32 x 1-1/2 OW810 100 0.83# • Invincibox Up To 2”
T8322OR 09998 8-32 x 2 OW810 100 1.06#
10-24
Packaging:
T102412OR 09905 10-24 x 1/2 OW810 100 0.54#
T102434OR 09915 10-24 x 3/4 OW810 100 0.69#
T10241OR 09909 10-24 x 1 OW810 100 0.83#
T1024112OR 09897 10-24 x 1-1/2 OW810 100 1.11#
T10242OR 09912 10-24 x 2 OW810 50 0.69#
10-32
T103212OR 09925 10-32 x 1/2 OW810 100 0.54#
T103234OR 09936 10-32 x 3/4 OW810 100 0.69# STD SLV
T10321OR 09930 10-32 x 1 OW810 100 0.83#
T1032112OR 09919 10-32 x 1-1/2 OW810 100 1.11#
T10322OR 09933 10-32 x 2 OW810 50 0.69#
1/4-20
T1412OR 09948 1/4 x 1/2 OW1214 100 1.11#
T1434OR 09958 1/4 x 3/4 OW1214 100 1.36#
T141OR 09952 1/4 x 1 OW1214 100 1.61# MSTR
T14112OR 09940 1/4 x 1-1/2 OW1214 50 1.06#

One Way Hand Driver (Removal Tool) PC 6670

This tool has two protruding carbide tips which dig in and grip the
screw for removal. While similar in appearance, it is not a spanner
driver.
CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
OW68 23000 #6-#8 Removal Tool 1 10 0.25#
OW810 23005 #8-#10 Removal Tool 1 10 0.31#
OW1214 23010 #12-#14 Removal Tool 1 10 0.35# Features:

• Hard Drivers Tamper
Proof
Tech Talk • One Way

Dottie Provides the Four Most Popular Types of Tamper
Proof Screws and Related Tools

They are: One Way, Spanner, Hex Pin, and Star Pin
(Torx®). Tamperproof screws are available in stainless
steel and black or alloy steel, stainless being the most
preferred. We will provide stainless screws unless
otherwise requested – subject to availability.
A7
CELEBRATING 50 YEARS LHDOTTIE.COM P:323-725-1000 F:323-721-0000
