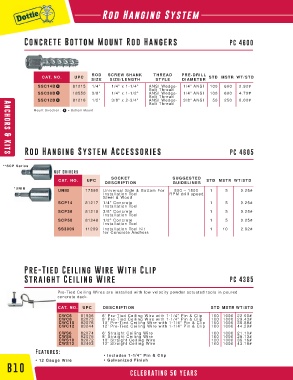

Page 50 - Catalog 31

Rod Hanging System

Concrete Bottom Mount Rod Hangers PC 4600

ROD SCREW SHANK THREAD PRE-DRILL
CAT. NO. UPC STD MSTR WT/STD
SIZE SIZE/LENGTH STYLE DIAMETER
SSC14B B 81215 1/4” 1/4” x 1-1/4” ANSI Wedge-gg 1/4” ANSI 100 600 2.92#
Bolt Thread
SSC38B B 18550 3/8” 1/4” x 1-1/2” ANSI Wedge-gg 1/4” ANSI 100 600 4.70#
Bolt Thread
SSC12B B 81216 1/2” 3/8” x 2-3/4” ANSI Wedge-gg 3/8” ANSI 50 250 8.00#
Bolt Thread
Mount Direction: B =BottomMount

Rod Hanging System Accessories PC 4605
Anchors & Kits

6&3 6H
Nut Drivers
SOCKET SUGGESTED
CAT. NO. UPC STD MSTR WT/STD
DESCRIPTION GUIDELINES
*UNIB
UNIB 17595 Universal Side & Bottom For 500 – 1500 1 5 0.25#
Installation Tool RPM drill speed
Steel & Wood
SCP14 81217 1/4” Concrete 1 5 0.25#
Installation Tool
SCP38 81218 3/8” Concrete 1 5 0.25#
Installation Tool
SCP50 81248 1/2” Concrete 1 5 0.25#
Installation Tool
SS3009 11209 Installation Tool Kit 1 10 2.92#
for Concrete Anchors

Pre-Tied Ceiling Wire With Clip
Straight Ceiling Wire PC 4385

Pre-Tied Ceiling Wires are installed with low velocity powder actuated tools in poured
concrete deck.

CAT. NO. UPC DESCRIPTION STD MSTR WT/STD
CWC6 81936 6’ Pre-Tied Ceiling Wire with 1-1/4” Pin & Clipg p 100 1000 22.00#
CWC8 82073 8’ Pre-Tied Ceiling Wire with 1-1/4” Pin & Clipg p p 100 1000 29.43#
CWC10 82076 10’ Pre-Tied Ceiling Wire with 1-1/4” Pin & Clipg p 100 1000 36.88#
CWC12 83244 12’ Pre-Tied Ceiling Wire with 1-1/4” Pin & Clip 100 1000 44.29#
CWS6 82074 6’ Straight Ceiling Wiregg g 100 1000 21.10#
CWS8 82075 8’ Straight Ceiling Wiregg g 100 1000 28.13#
CWS10 82072 10’ Straight Ceiling Wiregg g 100 1000 36.16#
CWS12 82403 12’ Straight Ceiling Wire 100 1000 43.19#
Features:
‡ ,QFOXGHV ´ 3LQ &OLS
‡ 12Gauge Wire ‡ *DOYDQL]HG )LQLVK
B10
CELEBRATING 50 YEARS
