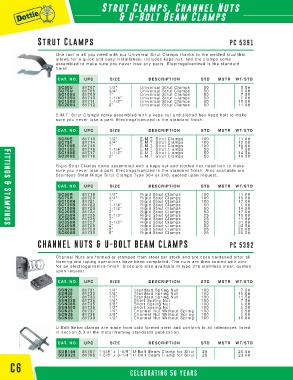

Page 66 - Catalog 31

Strut Clamps, Channel Nuts
& U-Bolt Beam Clamps

Strut Clamps PC 5391

One tool is all you need with our Universal Strut Clampsthanks to the welded stud that
allows for a quick and easy installation. Includes keps nut, and the clamps come
assembled to make sure you never lose any parts. Electrogalvanized is the standard
finish.

CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
SC50U 81707 1/2” Universal Strut Clampsp 50 5.5#
SC75U 81708 3/4” Universal Strut Clampsp 50 6.0#
SC100U 81709 1” Universal Strut Clampsp 50 7.5#
SC125U 81710 1-1/4” Universal Strut Clampsp 50 9.0#
SC150U 81711 1-1/2” Universal Strut Clampsp 50 10.0#
SC200U 81712 2” Universal Strut Clamps 50 11.0#
E.M.T. Strut Clamps come assembled with a keps nut and slotted hex head bolt to make
sure you never lose a part. Electrogalvanized is the standard finish.
CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD

SC50E 81713 1/2” E.M.T. Strut Clampsp 100 11.0#
SC75E 81714 3/4” E.M.T. Strut Clampsp 100 12.0#
SC100E 81715 1” E.M.T. Strut Clampsp 100 15.0#
SC125E 81716 1-1/4” E.M.T. Strut Clampsp 50 7.5#
SC150E 81717 1-1/2” E.M.T. Strut Clampsp 50 14.5#
SC200E 81718 2” E.M.T. Strut Clamps 50 16.5#
Rigid Strut Clamps come assembled with a keps nut and slotted hex head bolt to make
sure you never lose a part. Electrogalvanized is the standard finish. Also available are
Stainless Steel Ridge Strut ClampsType 304 or 316, quoted upon request.

CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
SC50R 81719 1/2” Rigid Strut Clampsgg p 100 11.0#
SC75R 81720 3/4” Rigid Strut Clampsgg p 100 15.0#
SC100R 81721 1” Rigid Strut Clampsgg p 100 17.0#
SC125R 81722 1-1/4” Rigid Strut Clampsgg p 50 9.5#
SC150R 81723 1-1/2” Rigid Strut Clampsgg p 50 14.5#
SC200R 81724 2” Rigid Strut Clampsgg p 50 17.0#
SC250R 81725 2-1/2” Rigid Strut Clampsgg p 25 10.0#
SC300R 81726 3” Rigid Strut Clampsgg p 25 11.8#
SC350R 81727 3-1/2” Rigid Strut Clampsgg p 50 31.0#
SC400R 81728 4” Rigid Strut Clampsgg p 50 33.5#
Fittings & Stampings
SC500R 81729 5” Rigid Strut Clampsgg p 25 20.0#
SC600R 81730 6” Rigid Strut Clamps 25 25.2#
CHANNEL NUTS & U-BOLT BEAM CLAMPS PC 5392

Channel Nuts are formed or stamped from steel bar stock and are case hardened after all
forming and taping operations have been completed. The nuts are then coated with zinc
for an electrogalvanize finish. Sizes are also available in type 316 stainless steel, quoted
upon request.

CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
SSN25 81731 1/4” Standard Spring Nutpp g 100 7.5#
SSN38 81732 3/8” Standard Spring Nutpp g 100 10.0#
SSN50 81733 1/2” Standard Spring Nutp g 100 11.5#
SSN25S 81734 1/4” Short Spring Nutpp g 100 7.5#
SSN38S 81735 3/8” Short Spring Nutpp g 100 9.0#
SSN50S 81736 1/2” Short Spring Nutppp gg 100 8.2#
SCN25 81737 1/4” Channel Nut Without Springpp g 100 6.5#
SCN38 81738 3/8” Channel Nut Without Springpp g 100 9.0#
SCN50 81739 1/2” ChannelNut Without Spring 100 10.6#
U-Bolt Beam clamps are made from cold formed steel and conform to all tolerances listed
in section 5.3 ofthe metal framing standards publication.

CAT. NO. UPC SIZE DESCRIPTION STD MSTR WT/STD
SUB158 81767 1-5/8” x 1-5/8” U-Bolt Beam Clamp for Strutp 25 20.5#
SUB325 81768 1-5/8” x 3-1/4” U-Bolt Beam Clamp for Strut 25 23.0#
