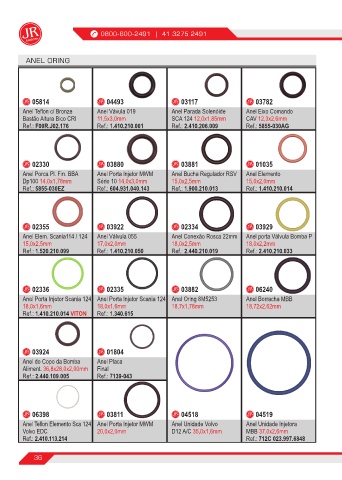

Page 36 - JR Barbosa Brasil - Catálogo de Peças e ferramentas 2022

0800-600-2491 | 41 3275 2491

ANEL ORING

05814 04493 03117 03782
Anel Teflon c/ Bronze Anel Vávula 019 Anel Parada Solenóide Anel Eixo Comando
Bastão Altura Bico CRI 11,5x3,0mm SCA 124 12,0x1,85mm CAV 12,3x2,6mm
Ref.: F00R.J02.176 Ref.: 1.410.210.001 Ref.: 2.410.206.009 Ref.: 5855-030AG

02330 03880 03881 01035
Anel Porca Pl. Fin. BBA Anel Porta Injetor MWM Anel Bucha Regulador RSV Anel Elemento
Dp100 14,0x1,78mm Série 10 14,0x3,0mm 15,0x2,5mm 15,0x2,0mm
Ref.: 5855-030EZ Ref.: 604.931.040.143 Ref.: 1.900.210.013 Ref.: 1.410.210.014

02355 03922 02334 03929
Anel Elem. Scania114 / 124 Anel Válvula 055 Anel Conexão Rosca 22mm Anel porta Válvula Bomba P
15,0x2,5mm 17,0x2,0mm 18,0x2,5mm 18,0x2,2mm
Ref.: 1.520.210.099 Ref.: 1.410.210.050 Ref.: 2.440.210.019 Ref.: 2.410.210.033

02336 02335 03882 06240
Anel Porta Injetor Scania 124 Anel Porta Injetor Scania 124 Anel Oring 8M5253 Anel Borracha MBB
18,0x1,6mm 18,0x1,6mm 18,7x1,78mm 18,72x2,62mm
Ref.: 1.410.210.014 VITON Ref.: 1.340.615

03924 01804

Anel do Copo da Bomba Anel Placa
Aliment. 36,8x28,0x2,00mm Final
Ref.: 2.440.109.005 Ref.: 7139-043

06398 03811 04518 04519
Anel Teflon Elemento Sca 124 Anel Porta Injetor MWM Anel Unidade Volvo Anel Unidade Injetora
Volvo EDC 20,0x2,0mm D12 A/C 35,0x1,6mm MBB 37,0x2,6mm
Ref.: 2.410.113.214 Ref.: 712C 023.997.6848

36
