Page 228 - The Effect of Hydrogen and Hydrides - ebook first test

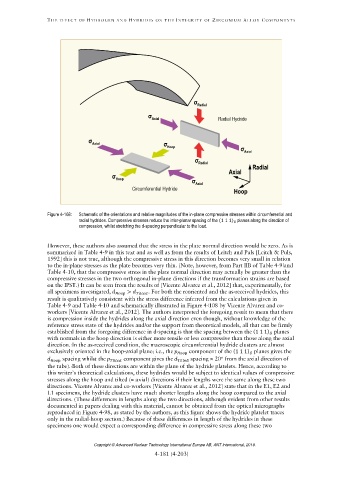

Figure 4-108: Schematic of the orientations and relative magnitudes of the in-plane compressive stresses within circumferential and
radial hydrides. Compressive stresses reduce the inter-planar spacing of the (1 1 1) planes along the direction of

compression, whilst stretching the d-spacing perpendicular to the load.

p >

(1 1 1)

p (1 1 1)
p Tilted  


