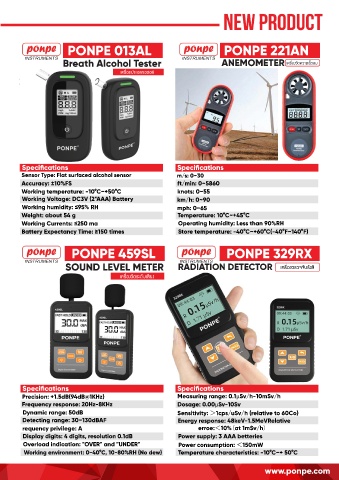

Page 3 - PONPE Catalogs 2022
P. 3

PONPE 013AL                                            PONPE 221AN

                       Breath Alcohol Tester                                   ANEMOMETER             à¤Ã×่ͧÇÑ´¤ÇÒÁàÃ็ÇÅÁ

                                           à¤Ã×่ͧໆÒáÍÅ¡ÍÎÍŏ



















         Specifications                                         Specifications
         Sensor Type: Flat surfaced alcohol sensor             m/s: 0~30
         Accuracy: ±10%FS                                      ft/min: 0~5860
         Working temperature: -10°C~+50°C                      knots: 0~55
         Working Voltage: DC3V (2*AAA) Battery                 km/h: 0~90
         Working humidity: ≤95% RH                             mph: 0~65
         Welght: about 54 g                                    Temperature: 10°C~+45°C
         Working Currents: ≤250 ma                              Operating humidity: Less than 90%RH
         Battery Expectancy Time: ≥150 times                    Store temperature: -40°C~+60°C(-40°F~140°F)


                          PONPE 459SL                                            PONPE 329RX

                        SOUND LEVEL METER                       RADIATION DETECTOR                  à¤Ã×่ͧµÃǨ¨ÑºÃѧÊÕ
 Gas Leak Detector                         à¤Ã×่ͧÇÑ´ÃдѺàÊÕ§









 Alarm point: Default: Low alarm: 500ppm
 High alarm: 2000ppm.
 Alarm types: Audible buzzer alarm









         Specifications                                         Specifications
         Precision: +1.5dB(94dB@1KHz)                          Measuring range: 0.1 Sv/h-10mSv/h
         Frequency response: 20Hz-8KHz                         Dosage: 0.00 Sv-10Sv
         Dynamic range: 50dB                                   Sensitivity: ʼ1cps/uSv/h (relative to 60Co)
         Detecting range: 30~130dBAF                           Energy response: 48keV-1.5MeVRelative
         requency privilege: A                                         erroe:ʻ10%ʢat 1mSv/hʣ
         Display digits: 4 digits, resolution 0.1dB             Power supply: 3 AAA betteries
         Overload indication: "OVER" and "UNDER"                Power consumption: ʻ150mW
         Working environment: 0-40°C, 10-80%RH (No dew)         Temperature characteristics: -10°C~+ 50°C
