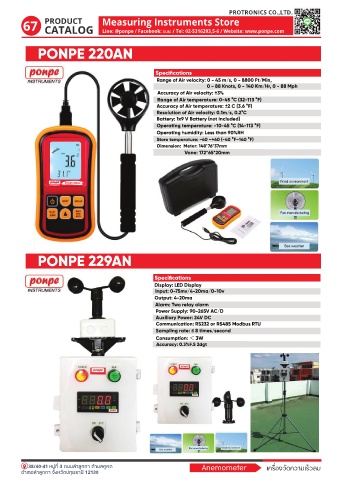

Page 76 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
67 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 220AN

Specifications
Range of Air velocity: 0 - 45 m/s, 0 - 8800 Ft/Min,
0 - 88 Knots, 0 - 140 Km/Hr, 0 - 88 Mph
Accuracy of Air velocity: ±3%
Range of Air temperature: 0-45 °C (32-113 °F)
Accuracy of Air temperature: ±2 C (3.6 °F)
Resolution of Air velocity: 0.1m/s, 0.2°C
Battery: 1x9 V Battery (not included)
Operating temperature: -10-45 °C (14-113 °F)
Operating humidity: Less than 90%RH
Store temperature: -40 ~+60 (-40 °F~140 °F)
Dimension: Meter: 148*76*37mm
Vane: 172*65*20mm

PONPE 229AN

Specifications
Display: LED Display
Input: 0-75mv/4-20ma/0-10v
Output: 4-20ma
Alarm: Two relay alarm
Power Supply: 90-265V AC/D
Auxiliary Power: 24V DC
Communication: RS232 or RS485 Modbus RTU
Sampling rate: ≤ 8 times/second
Consumption: ʻ 3W
Accuracy: 0.3%F.S 2dgt

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดความเร็วลม
