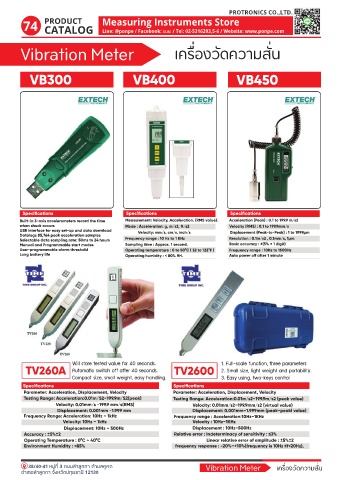

Page 83 - PONPE Catalogs 2022
P. 83

PROTRONICS CO.,LTD.
         74                          Measuring Instruments Store
                                     Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com



        Vibration Meter                                       เครื่องวัดความสั่น



            VB300                               VB400                               VB450




























         Specifications                       Specifications                        Specifications
        Built-in 3-axis accelerometers record the time   Measurement: Velocity, Acceleration. (RMS value).  Acceleration (Peak) : 0.1 to 199.9 m/s2
        when shock occurs                    Mode : Acceleration: g, m/s2, ft/s2  Velocity (RMS) : 0.1 to 199.9mm/s
        USB interface for easy set-up and data download  Velocity: mm/s, cm/s, inch/s  Displacement (Peak-to-Peak) : 1 to 1999 m
        Datalogs 85,764 peak acceleration samples
        Selectable data sampling rate: 50ms to 24 hours  Frequency range : 10 Hz to 1 KHz  Resolution : 0.1m/s2 , 0.1mm/s, 1 m
        Manual and Programmable start modes  Sampling time : Approx. 1 second.    Basic accuracy : ±(5% + 1 digit)
        User-programmable alarm threshold    Operating temperature : 0 to 50°C ( 32 to 122°F )  Frequency range : 10Hz to 1500Hz
        Long battery life                    Operating humidity : < 80% RH.       Auto power o  after 1 minute






















                          Will store tested value for 40 seconds.              1. Full-scale function, three parameters
          TV260A          Automatic switch off after 40 seconds.  TV2600       2. Small size, light weight and portability.
                          Compact size, small weight, easy handling.           3. Easy using, two-keys control
         Specifications                                        Specifications
         Parameter: Acceleration, Displacement, Velocity      Parameter: Acceleration, Displacement, Velocity
         Testing Range: Acceleration:0.01m/S2~199.9m/S2(peak)  Testing Range: Acceleration:0.01m/s2~199.9m/s2 (peak value)
                     Velocity: 0.01mm/s -199.9 mm/s(RMS)             Velocity: 0.01mm/s2~199.9mm/s2 (virtual value)
                     Displacement: 0.001mm -1.999 mm                 Displacement: 0.001mm~1.999mm (peak~peakl value)
         Frequency Range: Acceleration: 10Hz ~ 1kHz           Frequency range : Acceleration:10Hz~1KHz
                       Velocity: 10Hz ~ 1kHz                         Velocity : 10Hz~1KHz
                       Displacement: 10Hz ~ 500Hz                    Displacement : 10Hz~500Hz
         Accuracy : ±5%±2                                     Relative error : Indeterminacy of sensitivity : ≤3%
         Operating Temperature : 0°C ~ 40°C                               Linear relative error of amplitude : ±5%±2
         Environment Humidity : <85%                           frequency response : -20%~+10%(frequency is 10Hz ≤f<20Hz),



              38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
         ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130                                                       เครื่องวัดความสั่น
