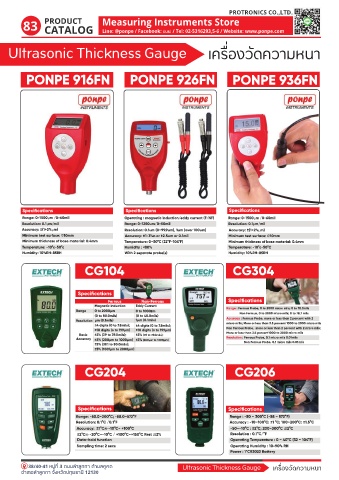

Page 92 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
83 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Ultrasonic Thickness Gauge เครื่องวัดความหนา

PONPE 916FN PONPE 926FN PONPE 936FN

Specifications Specifications Specifications
Range: 0-1500 m /0-60mil Operating : magnetic induction/eddy current (F/NF) Range: 0-1500 m /0-60mil
Resolution: 0.1 m/mil Range: 0-1250um/0-50mil Resolution: 0.1 m/mil
Accuracy: ±(1+2% m) Resolution: 0.1um (0~99.9um), 1um (over 100um) Accuracy: ±(1+2% m)
Minimum test surface: Φ10mm Accuracy: ±1-3%n or ±2.5um or 0.1mil Minimum test surface: Φ10mm
Minimum thickness of base material: 0.4mm Temperature: 0~50°C (32°F-104°F) Minimum thickness of base material: 0.4mm
Temperature: -10°c-50°c Humidity : <80% Temperature: -10°c-50°C
Humidity: 10%RH-85RH With 2 separate probe(s) Humidity: 10%RH-85RH

CG104 CG304

Specifications
Ferrous Non-Ferrous Specifications
Magnetic Induction Eddy Current Range : Ferrous Probe, 0 to 2000 micro mils; 0 to 78.7mils
Range 0 to 2000 m 0 to 1000μm Non Ferrous, 0 to 2000 micro mils; 0 to 78.7 mils
(0 to 80.0mils) (0 to 40.0mils)
Resolution m (0.1mils) 1 m (0.1mils) Accuracy : Ferrous Probe, more or less than 2 percent with 2
±4 digits (0 to 7.8mils); ±4 digits (0 to 7.8mils); micro mills; More or less than 3.5 percent 1000 to 2000 micro mils
±10 digits (o to 199 m) ±10 digits (o to 199 m) Non Ferrous Probe, more or less than 2 percent with 2 micro mils;
Basic ±3% (7.9 to 39.0mils); ±3% (7.9 to 39.0mils); More or less than 3.5 percent1000 to 2000 micro mils
Accuracy ±3% (200 m to 1000 m) ±3% (200 m to 1000 m) Resolution : Ferrous Probe, 0.1 micro mils 0.01mils
±5% (39.1 to 80.0mils); Non Ferrous Probe, 0.1 micro mils 0.01mils
±5% (1001 m to 2000 m)

CG204 CG206

Specifications Specifications
Range: -50.0~300°C; -58.0~572°F Range : -50 ~ 300°C (-58 ~ 572°F)
Resolution: 0.1°C /0.1°F Accuracy : -10~100°C: ±1 °C; 100~200°C: ±1.5°C
Accuracy: ±1°C@ -10°C~ +100°C -50~-10°C : ±2°C; 200~300°C :±2°C
±2°C@ -20°C~-10°C / +100°C~+150°C Rest :±2% Resolution : 0.1°C/°F
Data-hold function Operating Temperature : 0 ~ 40°C (32 ~ 104°F)
Sampling time: 2 secs Operating Humidity : 10-90% RH
Power : 1*CR2032 Battery

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดความหนา
