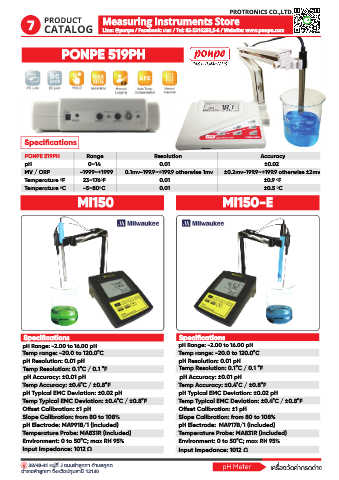

Page 10 - PONPE INSTRUMENTS
P. 10
PROTRONICS CO.,LTD.
7 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
PONPE 519PH
Specifications
PONPE 519PH Range Resolution Accuracy
pH 0~14 0.01 ±0.02
MV / ORP -1999~+1999 0.1mv-199.9~+199.9 otherwise 1mv ±0.2mv-199.9~+199.9 otherwise ±2mv
Temperature ºF 23~176ºF 0.01 ±0.9 ºF
Temperature ºC -5~80ºC 0.01 ±0.5 ºC
MI150 MI150-E
Specifications Specifications
pH Range: -2.00 to 16.00 pH pH Range: -2.00 to 16.00 pH
Temp range: -20.0 to 120.0°C Temp range: -20.0 to 120.0°C
pH Resolution: 0.01 pH pH Resolution: 0.01 pH
Temp Resolution: 0.1°C / 0.1 °F Temp Resolution: 0.1°C / 0.1 °F
pH Accuracy: ±0.01 pH pH Accuracy: ±0.01 pH
Temp Accuracy: ±0.4°C / ±0.8°F Temp Accuracy: ±0.4°C / ±0.8°F
pH Typical EMC Deviation: ±0.02 pH pH Typical EMC Deviation: ±0.02 pH
Temp Typical EMC Deviation: ±0.4°C / ±0.8°F Temp Typical EMC Deviation: ±0.4°C / ±0.8°F
O set Calibration: ±1 pH O set Calibration: ±1 pH
Slope Calibration: from 80 to 108% Slope Calibration: from 80 to 108%
pH Electrode: MA991B/1 (included) pH Electrode: MA917B/1 (included)
Temperature Probe: MA831R (included) Temperature Probe: MA831R (included)
Environment: 0 to 50°C; max RH 95% Environment: 0 to 50°C; max RH 95%
Input Impedance: 1012 Input Impedance: 1012
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดค�ากรดด�าง
