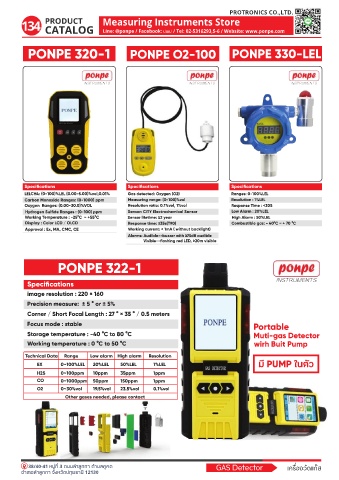

Page 137 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

134 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

PONPE 320-1 PONPE O2-100 PONPE 330-LEL

Specifications Specifications Specifications
LELCH4: (0-100)%LEL (0.00-5.00)%vol,0.01% Gas detected: Oxygen (O2) Ranges: 0-100%LEL
Carbon Monoxide Ranges: (0-1000) ppm Measuring range: (0-100)%vol Resolution : 1%LEL
Oxygen Ranges: (0.00-30.0)%VOL Resolution ratio: 0.1%vol, 1%vol Response Time : <30S
Hydrogen Sulfide Ranges : (0-100) ppm Sensor: CITY Electrochemical Sensor Low Alarm : 20%LEL
Working Temperature : -25°C ~ +55°C Sensor lifetime: ≥2 year High Alarm : 50%LEL
Display : Color LCD / OLCD Response time: ≤35s(T90) Combustible gas: - 40°C ~ + 70 °C
Approval : Ex, MA, CMC, CE Working current: < 1mA ( without backlight)
Alarms: Audible--buzzer with ≥75dB audible
Visible--flashing red LED, ≥20m visible

PONPE 322-1

Specifications
image resolution : 220 × 160
Precision measure: ± 5 ° or ± 5%
Corner / Short Focal Length : 27 ° × 35 ° / 0.5 meters
Focus mode : stable

Storage temperature : -40 °C to 80 °C
Working temperature : 0 °C to 50 °C

Technical Data Range Low alarm High alarm Resolution
EX 0~100%LEL 20%LEL 50%LEL 1%LEL
H2S 0~100ppm 10ppm 35ppm 1ppm
CO 0~1000ppm 50ppm 150ppm 1ppm
O2 0~30%vol 19.5%vol 23.5%vol 0.1%vol
Other gases needed, please contact
