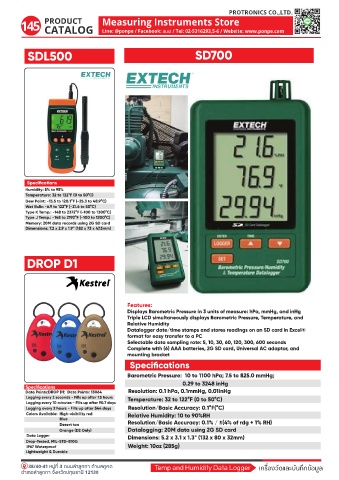

Page 148 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

145 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

SDL500 SD700

Specifications
Humidity: 5% to 95%
Temperature: 32 to 122°F (0 to 50°C)
Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C)
Wet Bulb: -6.9 to 122°F (-21.6 to 50°C)
Type K Temp.: -148 to 2372°F (-100 to 1300°C)
Type J Temp.: -148 to 2192°F (-100 to 1200°C)
Memory: 20M data records using 2G SD card
Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)

DROP D1

Features:
Displays Barometric Pressure in 3 units of measure: hPa, mmHg, and inHg
Triple LCD simultaneously displays Barometric Pressure, Temperature, and
Relative Humidity
Datalogger date/time stamps and stores readings on an SD card in Excel®
format for easy transfer to a PC
Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds
Complete with (6) AAA batteries, 2G SD card, Universal AC adaptor, and
mounting bracket
Specifications

Barometric Pressure: 10 to 1100 hPa; 7.5 to 825.0 mmHg;
0.29 to 3248 inHg
Specifications
Data Points:DROP D1: Data Points: 13064 Resolution: 0.1 hPa, 0.1mmHg, 0.01inHg
Logging every 2 seconds - Fills up after 7.5 hours Temperature: 32 to 122°F (0 to 50°C)
Logging every 10 minutes - Fills up after 90.7 days
Logging every 2 hours - Fills up after 544 days Resolution/Basic Accuracy: 0.1°F(°C)
Colors Available: High-visibility red Relative Humidity: 10 to 90%RH
Blue
Desert tan Resolution/Basic Accuracy: 0.1% / ±(4% of rdg + 1% RH)
Orange (D2 Only) Datalogging: 20M data using 2G SD card
Data Logger Dimensions: 5.2 x 3.1 x 1.3" (132 x 80 x 32mm)
Drop-Tested, MIL-STD-810G
IP67 Waterproof Weight: 10oz (285g)
Lightweight & Durable

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ เครื่องวัดและบันทึกข�อมูล
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
