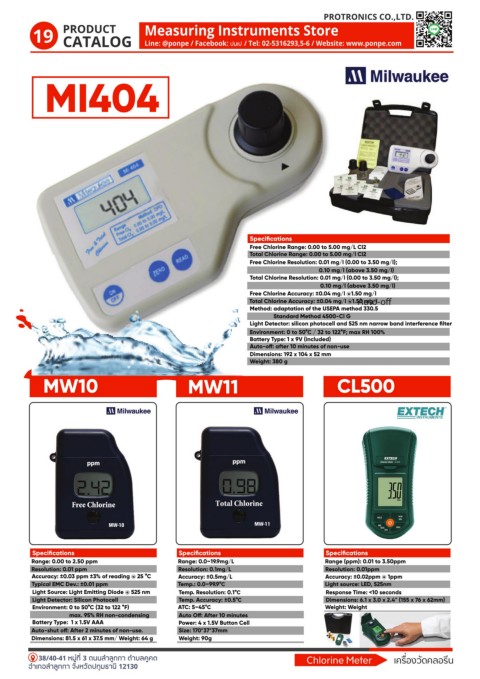

Page 22 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
19 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Specifications
Free Chlorine Range: 0.00 to 5.00 mg/L Cl2
Total Chlorine Range: 0.00 to 5.00 mg/l Cl2
Free Chlorine Resolution: 0.01 mg/l (0.00 to 3.50 mg/l);
0.10 mg/l (above 3.50 mg/l)
Total Chlorine Resolution: 0.01 mg/l (0.00 to 3.50 mg/l);
0.10 mg/l (above 3.50 mg/l)
Free Chlorine Accuracy: ±0.04 mg/l @1.50 mg/l
Auto-o
Total Chlorine Accuracy: ±0.04 mg/l @1.50 mg/l
Method: adaptation of the USEPA method 330.5
Standard Method 4500-Cl G
Light Detector: silicon photocell and 525 nm narrow band interference filter
Environment: 0 to 50°C / 32 to 122°F; max RH 100%
Battery Type: 1 x 9V (included)
Auto-o : after 10 minutes of non-use
Dimensions: 192 x 104 x 52 mm
Weight: 380 g

MW10 MW11 CL500

Specifications Specifications Specifications
Range: 0.00 to 2.50 ppm Range: 0.0~19.9mg/L Range (ppm): 0.01 to 3.50ppm
Resolution: 0.01 ppm Resolution: 0.1mg/L Resolution: 0.01ppm
Accuracy: ±0.03 ppm ±3% of reading @ 25 °C Accuracy: ±0.5mg/L Accuracy: ±0.02ppm @ 1ppm
Typical EMC Dev.: ±0.01 ppm Temp.: 0.0~99.9°C Light source: LED, 525nm
Light Source: Light Emitting Diode @ 525 nm Temp. Resolution: 0.1°C Response Time: <10 seconds
Light Detector: Silicon Photocell Temp. Accuracy: ±0.5°C Dimensions: 6.1 x 3.0 x 2.4" (155 x 76 x 62mm)
Environment: 0 to 50°C (32 to 122 °F) ATC: 5~45°C Weight: Weight
max. 95% RH non-condensing Auto O : After 10 minutes
Battery Type: 1 x 1.5V AAA Power: 4 x 1.5V Button Cell
Auto-shut o : After 2 minutes of non-use. Size: 170*37*37mm
Dimensions: 81.5 x 61 x 37.5 mm/ Weight: 64 g Weight: 90g
