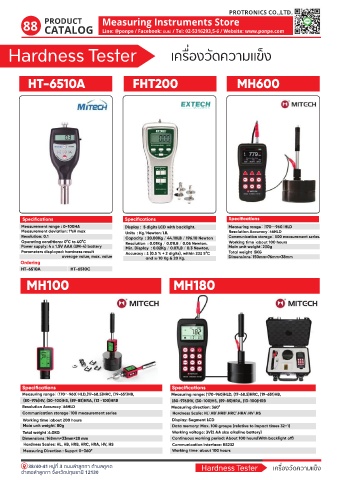

Page 91 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

88 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

Hardness Tester เครื่องวัดความแข็ง

HT-6510A FHT200 MH600

Specifications Specifications Specifications
Measurement range : 0-100HA Display : 5 digits LCD with backlight. Measuring rangeɿʢ 170ʙ960ʣHLD
Measurement deviation: 1%H max Units : Kg/Newton/LB. Resolution Accuracyɿ±6HLD
Resolution: 0.1 Capacity : 20.00Kg / 44.10LB / 196.10 Newton Communication storageɿ 500 measurement series.
Operating conditions: 0°C to 40°C Resolution : 0.01Kg / 0.01LB / 0.05 Newton. Working timeɿabout 100 hours
Power supply: 4 x 1.5V AAA (UM-4) battery Main unit weightɿ230g
Min. Display : 0.02Kg / 0.07LB / 0.3 Newton,
Parameters displayed: hardness result Accuracy : ± (0.5 % + 2 digits), within 23± 5°C Total weightɿ5KG
average value, max. value and @ 10 Kg & 20 Kg. Dimensionsɿ150mm×76mm×38mm
Ordering
HT-6510A HT-6510C
MH100 MH180

Specifications Specifications
Measuring rangeɿʢ 170ʙ960ʣHLD,(17-68.5)HRC, (19-651)HB, Measuring range: (170-960)HLD, (17-68.5)HRC, (19-651)HB,
(80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB (80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB
Resolution Accuracyɿ±6HLD Measuring direction: 360°
Communication storageɿ100 measurement series Hardness Scale: HL\HB\HRB\HRC\HRA\HV\HS
Working timeɿabout 200 hours Display: Segment LCD
Main unit weightɿ80g Data memory: Max. 100 groups (relative to impact times 32~1)
Total weightɿ4.0KG Working voltage: 3V(2 AA size alkaline battery)
Dimensionsɿ148mm×33mm×28 mm Continuous working period: About 100 hours(With backlight off)
Hardness Scales: HL, HB, HRB, HRC, HRA, HV, HS Communication interface: RS232
Measuring Direction : Supprt 0~360º Working timeɿabout 100 hours
