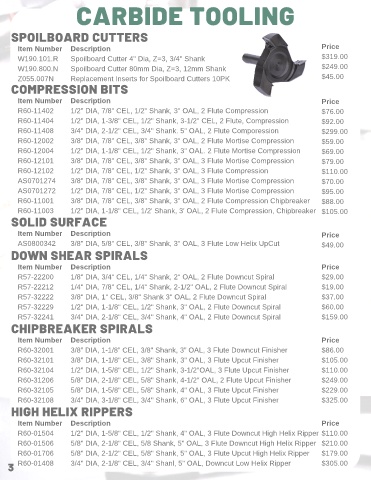

CARBIDE TOOLING

SPOILBOARD CUTTERS

Item Number Description Price
W190.101.R Spoilboard Cutter 4" Dia, Z=3, 3/4" Shank $319.00
W190.800.N Spoilboard Cutter 80mm Dia, Z=3, 12mm Shank $249.00
Z055.007N Replacement Inserts for Spoilboard Cutters 10PK $45.00
COMPRESSION BITS

Item Number Description Price
R60-11402 1/2" DIA, 7/8" CEL, 1/2" Shank, 3" OAL, 2 Flute Compression $76.00
R60-11404 1/2" DIA, 1-3/8" CEL, 1/2" Shank, 3-1/2" CEL, 2 Flute, Compression $92.00
R60-11408 3/4" DIA, 2-1/2" CEL, 3/4" Shank. 5" OAL, 2 Flute Comporession $299.00
R60-12002 3/8" DIA, 7/8" CEL, 3/8" Shank, 3" OAL, 2 Flute Mortise Compression $59.00
R60-12004 1/2" DIA, 1-1/8" CEL, 1/2" Shank, 3" OAL. 2 Flute Mortise Compression $69.00
R60-12101 3/8" DIA, 7/8" CEL, 3/8" Shank, 3" OAL, 3 Flute Mortise Compression $79.00
R60-12102 1/2" DIA, 7/8" CEL, 1/2" Shank, 3" OAL, 3 Flute Compression $110.00
AS0701274 3/8" DIA, 7/8" CEL, 3/8" Shank, 3" OAL, 3 Flute Mortise Compression $70.00
AS0701272 1/2" DIA, 7/8" CEL, 1/2" Shank, 3" OAL, 3 Flute Mortise Compression $95.00
R60-11001 3/8" DIA, 7/8" CEL, 3/8" Shank, 3" OAL, 2 Flute Compression Chipbreaker $88.00
R60-11003 1/2" DIA, 1-1/8" CEL, 1/2' Shank, 3' OAL, 2 Flute Compression, Chipbreaker $105.00
SOLID SURFACE

Item Number Description Price
AS0800342 3/8" DIA, 5/8" CEL, 3/8" Shank, 3" OAL, 3 Flute Low Helix UpCut $49.00
DOWN SHEAR SPIRALS

Item Number Description Price
R57-22200 1/8" DIA, 3/4" CEL, 1/4" Shank, 2" OAL, 2 Flute Downcut Spiral $29.00
R57-22212 1/4" DIA, 7/8" CEL, 1/4" Shank, 2-1/2" OAL, 2 Flute Downcut Spiral $19.00
R57-32222 3/8" DIA, 1" CEL, 3/8" Shank 3" OAL, 2 Flute Downcut Spiral $37.00
R57-32229 1/2" DIA, 1-1/8" CEL, 1/2" Shank, 3" OAL, 2 Flute Downcut Spiral $60.00
R57-32241 3/4" DIA, 2-1/8" CEL, 3/4" Shank, 4" OAL, 2 Flute Downcut Spiral $159.00
CHIPBREAKER SPIRALS

Item Number Description Price
R60-32001 3/8” DIA, 1-1/8” CEL, 3/8" Shank, 3” OAL, 3 Flute Downcut Finisher $86.00
R60-32101 3/8" DIA, 1-1/8" CEL, 3/8" Shank, 3" OAL, 3 Flute Upcut Finisher $105.00
R60-32104 1/2" DIA, 1-5/8" CEL, 1/2" Shank, 3-1/2"OAL, 3 Flute Upcut Finisher $110.00
R60-31206 5/8" DIA, 2-1/8" CEL, 5/8" Shank, 4-1/2" OAL, 2 Flute Upcut Finisher $249.00

R60-32105 5/8" DIA, 1-5/8" CEL, 5/8" Shank, 4" OAL, 3 Flute Upcut Finisher $229.00
R60-32108 3/4" DIA, 3-1/8" CEL, 3/4" Shank, 6" OAL, 3 Flute Upcut Finisher $325.00
HIGH HELIX RIPPERS

Item Number Description Price
R60-01504 1/2" DIA, 1-5/8" CEL, 1/2" Shank, 4" OAL, 3 Flute Downcut High Helix Ripper $110.00
R60-01506 5/8" DIA, 2-1/8" CEL, 5/8 Shank, 5" OAL, 3 Flute Downcut High Helix Ripper $210.00
R60-01706 5/8" DIA, 2-1/2" CEL, 5/8" Shank, 5" OAL, 3 Flute Upcut High Helix Ripper $179.00

3 R60-01408 3/4" DIA, 2-1/8" CEL, 3/4" Shanl, 5" OAL, Downcut Low Helix Ripper $305.00
