LOUDSPEAKERS LOUDSPEAKERS
Sphere Portion Cabinet Architectural Wooden Cabinets

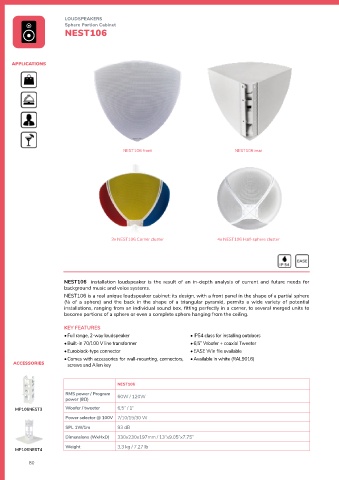

NEST106 ARQIS Series

APPLICATIONS APPLICATIONS

ARQIS105 / 106 ARQIS105 / 106 / 108 ARQIS108 Connection plate
Connection plate Wall bracket (included)

NEST106 front NEST106 rear

3x NEST106 Corner cluster 4x NEST106 Half-sphere cluster

NEST106 installation loudspeaker is the result of an in-depth analysis of current and future needs for ARQIS105 ARQIS106 ARQIS108
background music and voice systems.
NEST106 is a real unique loudspeaker cabinet: its design, with a front panel in the shape of a partial sphere ARQIS series has been specifically designed to fulfil permanent installation requirements where a perfect
(⅛ of a sphere) and the back in the shape of a triangular pyramid, permits a wide variety of potential balance between sound performance and architectural / interior's design matching is a must.
installations, ranging from an individual sound box, fitting perfectly in a corner, to several merged units to
become portions of a sphere or even a complete sphere hanging from the ceiling. KEY FEATURES •
ARQIS105 / ARQIS106 / ARQIS108:
KEY FEATURES • • Full range, 2-way architectural loudspeaker • U-bracket wall-mount accessory compatible, ARQ108UB
• Full range, 2-way loudspeaker • IP54 class for installing outdoors • Double INPUT/STACK connector, Euroblock (+ Speakon : (not included) (ARQIS108)
©
• Built-in 70/100 V line transformer • 6,5” Woofer + coaxial Tweeter ARQIS108) type, with security attachment screws to avoid • Metal safety sling included, to avoid drops in case
• Euroblock-type connector • EASE Win file available accidental disconnection of accidental detachment from the wall surface
• Comes with accessories for wall-mounting, connectors, • Available in white (RAL9016) • Wall bracket included, allowing for pan&tilt adjustment, • Available in black or white finish
ACCESSORIES screws and Allen key employing a single screw for fastening ACCESSORIES
ARQIS108:

NEST106 ARQIS105 ARQIS106 ARQIS108
RMS power / Program
RMS power / Program 60W / 120W 70W / 140W 120W / 240W 150W / 300W
power (8Ω) power (8Ω)
MP106NEST3 Woofer / tweeter 6,5” / 1” Woofer / tweeter 5,25” / 1” (tweeter) 6,5” / 1” 8” / 1”
ARQ108UBWH
Power selector @ 100V 7/10/15/30 W Connector Euroblock Euroblock Euroblock + Speakon
SPL 1W/1m 93 dB SPL 1W/1m 89 dB 92 dB 93 dB
186x280x210mm / 7.32”x 216x350x240mm / 244x390x280mm /
Dimensions (WxHxD) 330x230x197mm / 13”x9.05”x7.75” Dimensions (WxHxD)
11.02”x8.26” 8.50”x13.78”x9.45” 9.60"x15.35"x11.02"
Weight 3,3 kg / 7.27 lb Weight 3,6 kg / 7.93 lb 7,4 kg / 16.31 lb 8,4 kg / 18.52 lb
MP106NEST4 ARQ108UBBK
