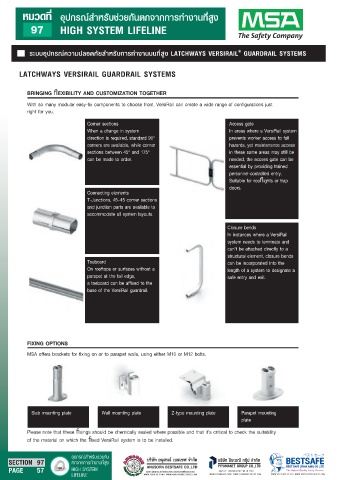

Page 72 - Sec 97

หมวดที่ อุปกรณสำหรับชวยกันตกจากการทำงานที่สูง

97 HIGH SYSTEM LIFELINE

®
ระบบอุปกรณความปลอดภัยสำหรับการทำงานบนที่สูง LATCHWAYS VERSIRAIL GUARDRAIL SYSTEMS

LATCHWAYS VERSIRAIL GUARDRAIL SYSTEMS

BRINGING flEXIBILITY AND CUSTOMIZATION TOGETHER

With so many modular easy-fix components to choose from, VersiRail can create a wide range of configurations just
right for you.
Corner sections Access gate
When a change in system In areas where a VersiRail system
direction is required, standard 90° prevents worker access to fall
corners are available, while corner hazards, yet maintenance access
sections between 45° and 175° in these same areas may still be
can be made to order. needed, the access gate can be
essential by providing trained
personnel-controlled entry.
Suitable for rooflights or trap
doors.
Connecting elements
T-Junctions, 45–45 corner sections
and junction parts are available to
accommodate all system layouts.

Closure bends
In instances where a VersiRail
system needs to terminate and
can’t be attached directly to a
structural element, closure bends
Toeboard can be incorporated into the
On rooftops or surfaces without a length of a system to designate a
parapet at the fall edge, safe entry and exit.
a toeboard can be affixed to the
base of the VersiRail guardrail.

FIXING OPTIONS

MSA offers brackets for fixing on or to parapet walls, using either M10 or M12 bolts.

Slab mounting plate Wall mounting plate Z-type mounting plate Parapet mounting
plate

Please note that these fixings should be chemically sealed where possible and that it’s critical to check the suitability
of the material on which the fixed VersiRail system is to be installed.
