Page 68 - Sec02B

หมวดที่ ถุงมือนิรภัย ESTSAFE R

02 SAFETY GLOVES BESTSAFE GLOVE CO.,LTD

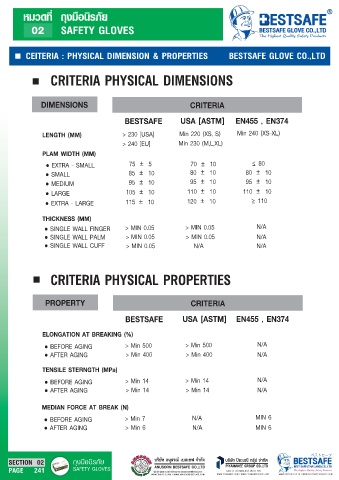

CEITERIA : PHYSICAL DIMENSION & PROPERTIES BESTSAFE GLOVE CO.,LTD

CRITERIA PHYSICAL DIMENSIONS

DIMENSIONS CRITERIA

BESTSAFE USA [ASTM] EN455 , EN374

LENGTH (MM) > 230 [USA] Min 220 (XS, S) Min 240 (XS-XL)
> 240 [EU] Min 230 (M,L,XL)
PLAM WIDTH (MM)

• EXTRA - SMALL 75 5 70 10 < 80
-
• SMALL 85 10 80 10 80 10
• MEDIUM 95 10 95 10 95 10
• LARGE 105 10 110 10 110 10
-
• EXTRA - LARGE 115 10 120 10 > 110

THICKNESS (MM)
• SINGLE WALL FINGER > MIN 0.05 > MIN 0.05 N/A
• SINGLE WALL PALM > MIN 0.05 > MIN 0.05 N/A
• SINGLE WALL CUFF > MIN 0.05 N/A N/A

CRITERIA PHYSICAL PROPERTIES

PROPERTY CRITERIA

BESTSAFE USA [ASTM] EN455 , EN374

ELONGATION AT BREAKING (%)

• BEFORE AGING > Min 500 > Min 500 N/A
• AFTER AGING > Min 400 > Min 400 N/A

TENSILE STERNGTH (MPa)
• BEFORE AGING > Min 14 > Min 14 N/A
• AFTER AGING > Min 14 > Min 14 N/A

MEDIAN FORCE AT BREAK (N)

• BEFORE AGING > Min 7 N/A MIN 6
• AFTER AGING > Min 6 N/A MIN 6

ϕετηʔϑ
