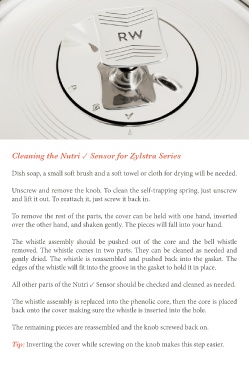

Cleaning the Nutri ✓ Sensor for Zylstra Series

Dish soap, a small soft brush and a soft towel or cloth for drying will be needed.

Unscrew and remove the knob. To clean the self-trapping spring, just unscrew
and lift it out. To reattach it, just screw it back in.

To remove the rest of the parts, the cover can be held with one hand, inverted
over the other hand, and shaken gently. The pieces will fall into your hand.

The whistle assembly should be pushed out of the core and the bell whistle
removed. The whistle comes in two parts. They can be cleaned as needed and
gently dried. The whistle is reassembled and pushed back into the gasket. The
edges of the whistle will fit into the groove in the gasket to hold it in place.

All other parts of the Nutri ✓ Sensor should be checked and cleaned as needed.

The whistle assembly is replaced into the phenolic core, then the core is placed
back onto the cover making sure the whistle is inserted into the hole.

The remaining pieces are reassembled and the knob screwed back on.

Tip: Inverting the cover while screwing on the knob makes this step easier.
