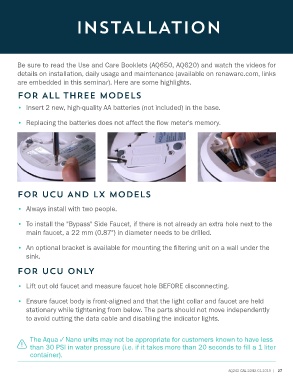

Page 27 - AQ242 CAL-C1.1019-Seminar-Water Filters

INSTALLATION

Be sure to read the Use and Care Booklets (AQ650, AQ620) and watch the videos for
details on installation, daily usage and maintenance (available on renaware.com, links
are embedded in this seminar). Here are some highlights.

FOR ALL THREE MODELS

• Insert 2 new, high-quality AA batteries (not included) in the base.

• Replacing the batteries does not affect the flow meter's memory.

FOR UCU AND LX MODELS

• Always install with two people.

• To install the "Bypass" Side Faucet, if there is not already an extra hole next to the
main faucet, a 22 mm (0.87") in diameter needs to be drilled.

• An optional bracket is available for mounting the filtering unit on a wall under the

sink.

FOR UCU ONLY

• Lift out old faucet and measure faucet hole BEFORE disconnecting.

• Ensure faucet body is front-aligned and that the light collar and faucet are held

stationary while tightening from below. The parts should not move independently
to avoid cutting the data cable and disabling the indicator lights.

The Aqua Nano units may not be appropriate for customers known to have less
than 30 PSI in water pressure (i.e. if it takes more than 20 seconds to fill a 1 liter
container).
