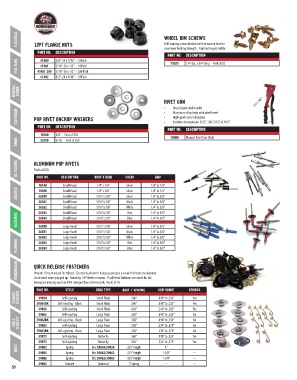

Page 3 - 2019 EW Catalog_Fasteners

wheel rim screws
12pt flange nuts Self-tapping screws feature built-in washer face for
maximum holding strength. Finished in gold iridite.
PART NO. DESCRIPTION
PART NO. DESCRIPTION
41480 3/8”-24 x 7/16” - 10 Pack 73035
41481 7/16”-20 x 1/2” - 10 Pack 1/4” dia. x 3/4” long - Pack of 35
41481-200 7/16”-20 x 1/2” - 200 Pack
41482 1/2”-20 x 9/16” - 10 Pack

rivet gun
• Drop forged steel handle
• Aluminum alloy body with steel insert
pop rivet backup washers • • High-grade steel alloy jaws
Includes 4 nosepieces: 3/32”, 1/8”, 5/32”, & 3/16”
PART NO. DESCRIPTION
PART NO. DESCRIPTION
18100 1/8” - Pack of 250 18000 Manual Rivet Gun (Red)
36100 3/16” - Pack of 250

aluminum pop rivets
Packs of 250.
part no. DESCRIPTION BODY X HEAD COLOR GRIP
18140 Small Head 1/8” x 1/4” Silver 1/8” to 1/4”
18380 Small Head 1/8” x 3/8” Silver 1/8” to 1/4”
36380 Small Head 3/16” x 3/8” Silver 1/4” to 3/8”
36381 Small Head 3/16” x 3/8” Black 1/4” to 3/8”
36382 Small Head 3/16” x 3/8” White 1/4” to 3/8”
36383 Small Head 3/16” x 3/8” Red 1/4” to 3/8”
36384 Small Head 3/16” x 3/8” Blue 1/4” to 3/8”
36580 Large Head 3/16” x 5/8” Silver 1/4” to 3/8”
36581 Large Head 3/16” x 5/8” Black 1/4” to 3/8”
36582 Large Head 3/16” x 5/8” White 1/4” to 3/8”
36583 Large Head 3/16” x 5/8” Red 1/4” to 3/8”
36584 Large Head 3/16” x 5/8” Blue 1/4” to 3/8”

quick release fasteners
Provide 1/4 turn action for release. Ejected studs won’t hang up and give a visual reference the fastener
is unlocked when popped up. Fasten by 1/8” rivets or screws. Flush head fasteners are made for the
Aerospace industry and are 20% stronger than other brands. Packs of 10.
part no. STYLE HEAD TYPE BODY / SPACING GRIP RANGE SPRINGS
39054 Self-ejecting Small Flush .500” .198” to .233” Yes
39054BK Self-ejecting - Black Small Flush .500” .198” to .233” Yes
39056 Self-ejecting Small Flush .650” .349” to .382” Yes
39062 Self-ejecting Large Flush .500” .198” to .233” No
39062BK Self-ejecting - Black Large Flush .500” .198” to .233” No
39063 Self-ejecting Large Flush .550” .234” to .271” No
39063BK Self-ejecting - Black Large Flush .550” .234” to .271” No
39072 Self-ejecting Butterfly .500” .198” to .233” Yes
39073 Self-ejecting Butterfly .550” .234” to .271” Yes
39082 Spring Fits 39054/39056 .325” Height 1” ---
39085 Spring Fits 39062/39063 .375” Height 1-3/8” ---
39086 Spring Fits 39062/39063 .425” Height 1-3/8” ---
39083 Bracket Universal 1” Spring --- ---
50
