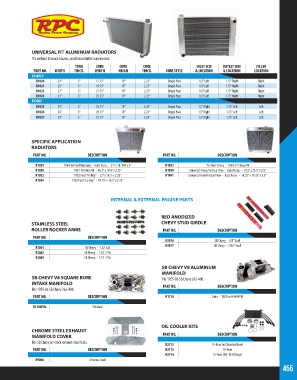

Page 455 - 2018 Master Catalog

UNIVERSAL FIT ALUMINUM RADIATORS
TIG welded, furnace brazed, and feature billet water necks.
TANK CORE CORE CORE INLET SIZE OUTLET SIZE FILLER
PART NO. WIDTH THICK. WIDTH HEIGH THICK. CORE STYLE & LOCATION & LOCATION LOCATION
CHEVY
R1020 23” 3” 17.75” 19” 2.25” Single Pass 1.5” Left 1.75” Right Right
R1021 25” 3” 19.75” 19” 2.25” Single Pass 1.5” Left 1.75” Right Right
R1022 27” 3” 21.75” 19” 2.25” Single Pass 1.5” Left 1.75” Right Right
R1024 31” 3” 25.75” 19” 2.25” Single Pass 1.5” Left 1.75” Right Right
FORD
R1025 24” 3” 18.75” 19” 2.25” Single Pass 1.5” Right 1.75” Left Left
R1026 26” 3” 20.75” 19” 2.25” Single Pass 1.5” Right 1.75” Left Left
R1027 29” 3” 22.75” 19” 2.25” Single Pass 1.5” Right 1.75” Left Left

SPECIFIC APPLICATION
RADIATORS
PART NO. DESCRIPTION PART NO. DESCRIPTION

R1029 1964-66 Ford Mustang - Auto Trans. - 31” x 18-1/4” x 3” R1035 “Tri-Five” Chevy - 1955-57 Chevy V8
R1030 1967-70 Retro Fit - 16.5” x 19.6” x 2.25” R1038 Universal Chevy Vertical Flow - Auto Trans. - 15.5” x 23.5” x 2.5”
R1032 1932 Ford “Hi-Boy” - 22” x 16.5” x 2.25” R1041 Universal Ford Vertical Flow - Auto Trans. - 18.25” x 19.25” x 2.5”
R1034 1932 Ford “Lo-Boy” - 17.75” x 16.5” x 2.25”

INTERNAL & EXTERNAL ENGINE PARTS

RED ANODIZED
STAINLESS STEEL CHEVY STUD GIRDLE
ROLLER ROCKER ARMS PART NO. DESCRIPTION
PART NO. DESCRIPTION
R3016 SB Chevy - 3/8” Stud
R3017 SB Chevy - 7/16” Stud
R3001 SB Chevy - 1.52 3/8
R3002 SB Chevy - 1.52 7/16
R3005 SB Chevy - 1.72 7/16
SB CHEVY V8 ALUMINUM
MANIFOLD
SB CHEVY V8 SQUARE BORE Fits 1955-86 SB Chevy 262-400.
INTAKE MANIFOLD PART NO. DESCRIPTION
Fits 1955-86 SB Chevy 262-400.
PART NO. DESCRIPTION R1110 Satin - 1500 to 6500 RPM
R1106POL Polished

OIL COOLER KITS
CHROME STEEL EXHAUST
MANIFOLD COVER PART NO. DESCRIPTION
Fits SB Chevy w/ stock exhaust manifolds. R2712 10-Row (w/ Braided Hose)
PART NO. DESCRIPTION R2713 10-Row
R2714 15-Row (AN-10 Fittings)
R9066 Chrome Steel
455
