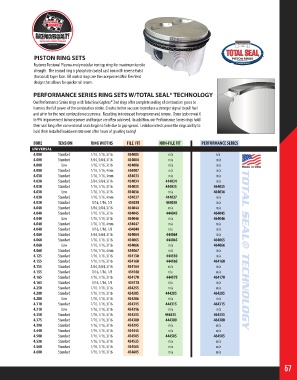

Page 57 - 2018 Master Catalog

PISTON RING SETS
Features Torsional Plasma-moly nodular iron top rings for maximum tensile
strength. The second ring is phosphate coated cast iron with reverse twist
(torsional) taper face. Oil control rings are the race proven Mini Flex Vent
design that allows for quicker oil return.

PERFORMANCE SERIES RING SETS W/TOTAL SEAL® TECHNOLOGY

Our Performance Series rings with Total Seal Gapless® 2nd rings offer complete sealing of combustion gases to
harness the full power of the combustion stroke. Creates better vacuum to produce a stronger signal to pull fuel
and air in for the next combustion occurrence. Resulting in increased horsepower and torque. Dyno tests reveal 6
to 9% improvement in horsepower and torque are often achieved. In addition, our Performance Series rings hold
their seal long after conventional seals begin to fade due to gap spread. Leakdown tests prove the rings ability to
hold their installed leakdown rate even after hours of grueling racing!

BORE TENSION RING WIDTHS FILE FIT NON-FILE FIT PERFORMANCE SERIES
UNIVERSAL
4.000 Standard 1/16, 1/16, 3/16 454005 n/a n/a
4.000 Standard 5/64, 5/64, 3/16 454004 n/a n/a
4.000 Low 1/16, 1/16, 3/16 454006 n/a n/a
4.000 Standard 1/16, 1/16, 4mm 454007 n/a n/a
4.030 Standard 1/16, 1/16, 3mm 454033 n/a n/a
4.030 Standard 5/64, 5/64, 3/16 454034 444034 n/a
4.030 Standard 1/16, 1/16, 3/16 454035 444035 464035
4.030 Low 1/16, 1/16, 3/16 454036 n/a 464036
4.030 Standard 1/16, 1/16, 4mm 454037 444037 n/a
4.030 Standard 1/16, 1/16, 1/8 454038 444038 n/a
4.040 Standard 5/64, 5/64, 3/16 454044 n/a n/a
4.040 Standard 1/16, 1/16, 3/16 454045 444045 464045
4.040 Low 1/16, 1/16, 3/16 454046 n/a 464046
4.040 Standard 1/16, 1/16, 4mm 454047 n/a n/a
4.040 Standard 1/16, 1/16, 1/8 454048 n/a n/a
4.060 Standard 5/64, 5/64, 3/16 454064 444064 n/a
4.060 Standard 1/16, 1/16, 3/16 454065 444065 464065
4.060 Low 1/16, 1/16, 3/16 454066 n/a 464066
4.060 Standard 1/16, 1/16, 4mm 454067 n/a n/a TOTAL SEAL® TECHNOLOGY
4.125 Standard 1/16, 1/16, 3/16 454130 444130 n/a
4.155 Standard 1/16, 1/16, 3/16 454160 444160 464160
4.155 Standard 5/64, 5/64, 3/16 454164 n/a n/a
4.155 Standard 1/16, 1/16, 1/8 454168 n/a n/a
4.165 Standard 1/16, 1/16, 3/16 454170 444170 464170
4.165 Standard 1/16, 1/16, 1/8 454178 n/a n/a
4.250 Standard 1/16, 1/16, 3/16 454255 n/a n/a
4.280 Standard 1/16, 1/16, 3/16 454285 444285 464285
4.280 Low 1/16, 1/16, 3/16 454286 n/a n/a
4.310 Standard 1/16, 1/16, 3/16 454315 444315 464315
4.310 Low 1/16, 1/16, 3/16 454316 n/a n/a
4.350 Standard 1/16, 1/16, 3/16 454355 444355 464355
4.375 Standard 1/16, 1/16, 3/16 454380 444380 464380
4.390 Standard 1/16, 1/16, 3/16 454395 n/a n/a
4.440 Standard 1/16, 1/16, 3/16 454445 n/a n/a
4.500 Standard 1/16, 1/16, 3/16 454505 444505 464505
4.530 Standard 1/16, 1/16, 3/16 454535 n/a n/a
4.560 Standard 1/16, 1/16, 3/16 454565 n/a n/a
4.600 Standard 1/16, 1/16, 3/16 454605 n/a n/a
