Chapter 3: Machinery

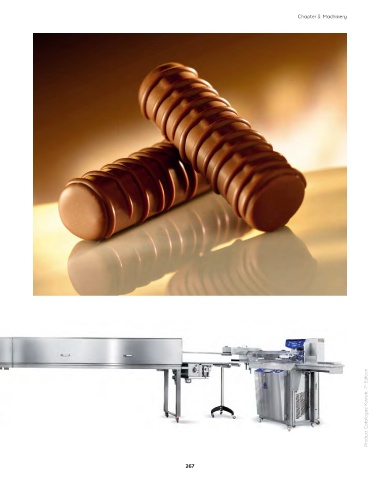

TUNNEL DOPPIO

Coating Line

An innovative machine created to satisfy the ever increasing
needs for multifunctional machines. In one direction this cooling
tunnel coats pralines, cakes, bread-sticks, snacks, etc. With the
same specifications as the previous coating devices, but on a
separate level it also has a belt moving in the opposite direction
within the cooling tunnel which allows for the processing with an
automatic transfer polycarbonate mould loader (external size
275 x 175 mm); this works by firstly running the products on the
upper cooling level for 8 metres and then passing the moulds
to the lower level which brings them back to the starting point
via a polycarbonate belt. The advantage is clear: this patented
system transforms an 8 meter covered tunnel into a 16 meter
one, hence doubling the cooling times, product quality and
productivity. We recommend the installation of the detacher at
the opposite side to the coating belt.

Technical Data

Optimal Ambient Temp: 20 - 25°C; maximum 32°C
Dimensions: H. 6000/12000, p.850 mm
Working width: 300 mm
