Page 11 - 12-5-19

A R C H ER C ollection

©2006 CL Sterling & son, llc
designed by peter carlson, patent pending

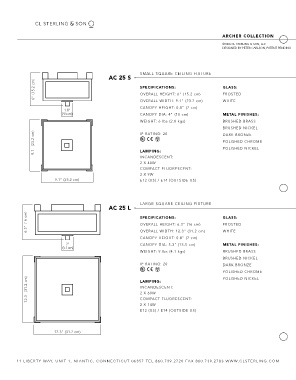

6" (15.2 cm) AC 25 s SMAL L S QU ARE C E I L I N G F I X T U R E

1.8" S P E C I F I C AT I O N S : GLASS:
(4.5 cm) OVERALL HEIGHT: 6" (15.2 cm) FROSTED
9.1" (23.2 cm) OVERALL WIDTH: 9.1" (23.2 cm) WHITE
CANOPY HEIGHT: 0.8" (2 cm)
2" CANOPY DIA: 4" (10 cm) metal finishes:
(5.1 cm) WEIGHT: 6 lbs (2.8 kgs) BRUSHED BRASS
12.3" (31.2 cm) BRUSHED NICKEL
9.1" (23.2 cm) IP RATING: 20 DARK BRONZE
POLISHED CHROME
LAMPING: POLISHED NICKEL
INCANDESCENT:
2 X 40W
COMPACT FLUORESCENT:
2 X 9W
E12 (US) / E14 (OUTSIDE US)

AC 25 L LARGE SQUARE CEILING FIXTURE

6.3" (16 cm) S P E C I F I C AT I O N S : GLASS:
OVERALL HEIGHT: 6.3" (16 cm) FROSTED
OVERALL WIDTH: 12.3" (31.2 cm) WHITE
CANOPY HEIGHT: 0.8" (2 cm)
CANOPY DIA: 5.3" (13.5 cm) metal finishes:
WEIGHT: 9 lbs (4.1 kgs) BRUSHED BRASS
BRUSHED NICKEL
IP RATING: 20 DARK BRONZE
POLISHED CHROME
12.3" (31.2 cm) LAMPING: POLISHED NICKEL
INCANDESCENT:
2 X 60W
COMPACT FLUORESCENT:
2 X 14W
E12 (US) / E14 (OUTSIDE US)

1 1 L I B E R T Y W AY, U N I T 1 , N I A N T I C , connecticut 0 6 3 5 7 tel 8 6 0 . 7 3 9 . 2 7 2 0 fa x 8 6 0 . 7 3 9 . 2 7 8 3 www. cl s terlin g . co m
