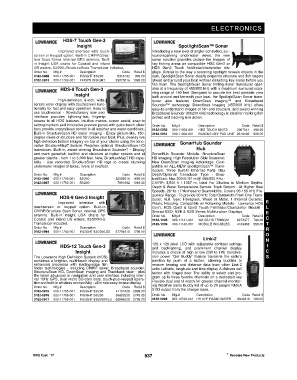

Page 937 - Davidsoins catalog

ELECTRONICS

HDS-7 Touch Gen-3
Insight SpotlightScan™ Sonar
Improved interface with touch- Introducing a new level of angler-controlled, sur-
screen or keypad option. Built-In CHIRP/Struc- round-scanning underwater views, the new
ture Scan Sonar. Internal GPS antenna. Built- sonar solution provides picture-like images of
in Insight USA charts for Coastal and Inland key fishing areas on compatible HDS Gen2 or
US waters. 83/200+StructureScan Transducer included. HDS Gen2 Touch fishfinder/chartplotter dis-
Order No. Mfg.# Description Code Retail $ plays. Similar to the way a scanning spotlight reveals objects in the
0182-0988 000-11785-001 INSIGHT 83/200 8316192 999.00 dark, SpotlightScan Sonar clearly pinpoints structure and fish targets
0182-0974 000-11788-001 FF/GPS INSIGHT 83870016 1099.00 ahead and around your boat without disturbing key areas before you
fish them. The SpotlightScan Sonar trolling-motor transducer oper-
HDS-9 Touch Gen-3 ates at a frequency of 455/800 kHz with a maximum surround-scan-
Insight ning range of 150 feet. Designed to provide the best possible view
both around and beneath your boat, the SpotlightScan Sonar trans-
High-definition, 9-inch, wide- ducer also features DownScan Imaging™ and Broadband
screen color display with touchscreen func- Sounder™ technology. DownScan Imaging (455/800 kHz) offers
tionality for fast and easy operation. Easy to easy-to-understand images of fish and structure, and award-winning
use touchscreen - Revolutionary new user Broadband Sounder (83/200 kHz) technology is ideal for marking fish
interface provides lightning-fast, fingertip arches and tracking lure action.
access to all HDS features. Intuitive menus, cursor assist, snap-to
setting markers and innovative preview panes with quick-touch slider Order No. Mfg.# Description Code Retail $
bars provide unparalleled control in all weather and water conditions. 0182-0950 000-11303-001 HDS TOUCH UNITS 2067541 499.00
Built-in StructureScan HD sonar imaging - Enjoy picture-like, 180- 0182-0951 000-11304-001 BUNDLE KEY PAD UNIT 8316192 999.00
degree views of structure and fish below your boat. Plus, overlay live
high-definition bottom imagery on top of your charts using the inno- SonarHub Sounder
vative StructureMapT feature. Requires optional StructureScan HD
transducer. Built-in, award-winning Broadband SounderT - Display Hub
and mark gamefish, baitfish and structure at higher speeds and at SonarHub Sounder Module. StructureScan
greater depths - from 1 to 3,000 feet. New, StructureMapT HD capa- HD Imaging. High Resolution Side Scannner.
bility - Use recorded StructureScan HD logs to create stunning New DownScan Imaging Advantage. Com-
underwater images of lakes, rivers or seafloor. patible w/ ALL-NEW SpotlightScan™ Trans-
ducers. Three Built-In Ethernet Ports. Max
Order No. Mfg.# Description Code Retail $ Depth/Optional Transducer Type - Struc-
0182-0986 000-11790-001 83/200 36085516 1699.00 tureScan: Max 300 ft / 91 m @ 455/800 KHz -
0182-0987 000-11786-001 50/200 7891692 1049.00 CHIRP: 3,500 ft / 1067 m. Ideal For Shallow to Medium Depths.
Depth & Water Temperature Sensor. Track Bottom - At Higher Boat
Speeds. 26° to 17°Archesand Beamwidths. Covers 95-155 kHz Fre-
quency Range - To provide 60 kHz Total Bandwidth From One Trans-
HDS-9 Gen-3 Insight ducer. Hull Type: Fiberglass, Wood or Metal. 1 Internal Ceramic.
Improved interface with Plastic Housing. Compatible w/ Following Models - Lowrance HDS E
touchscreen or keypad option. Built-In Gen1, HDS Gen2 & Gen2 Touch Fishfinder/Chartplotter Models - L
CHIRP/Structure Scan Sonar. Internal GPS Simrad NSO, NSE & NSS Series Multifunction Displays. E
antenna. Built-in Insight USA charts for Order No. Mfg.# Description Code Retail $
Coastal and Inland US waters. 83/200KHz 0182-1008 000-11141-001 W/LSS HD TRNSOM 6272377 799.00 C
Transducer included. 0182-1009 000-11142-001 MODULE W/CABLES 4139453 599.00 T
Order No. Mfg.# Description Code Retail $ R
0182-0984 000-11793-001 INSIGHT 83/200/LSS 57794616 1799.00
O
Link-2 N
128 x 128 pixel LCD with adjustable contrast settings
HDS-12 Touch Gen-3 and backlighting, and prominent channel display I
Insight Includes a choice of high or low (5W to 1W) transmis- C
The Lowrance High Definition System (HDS) sion power “Get Buddy” feature transmits the radio’s S
combines a brighter, multi-touch display and position by push of a button, allowing buddies to
enhanced processor with leading-edge fish receive bearing and distance data from other Link-2
finder technologies - including CHIRP sonar, Broadband sounder, units Latitude, longitude and time display A distress call
StructureScan HD, DownScan imaging and Trackback view - plus button with hinged door The ability to select and pro-
the latest advances in navigation and user interface including inter- gram up to three favorite channels on a dedicated key
nal 10Hz GPS, dual micro SD-card slots, touch-plus-keypad opera- Flexible dual and tri watch for greater channel monitor-
tion and built-in wireless connectivity - all in one easy-to-use display.
Order No. Mfg.# Description Code Retail $ ing Weather alerts Buddy list of up to 20 people NMEA
0182-0975 000-11795-001 INSIGHT 83/200 41157428 2699.00 0183 output from the charger base.
0182-0976 000-11796-001 INSIGHT 50/200 36902528 2749.00 Order No. Mfg.# Description Code Retail $
0182-0977 000-11798-001 INSIGHT 8350/200/LS 62866528 2799.00 0182-0896 000-10782-001 HH VHF RADIO W/GPS 9942816 199.00

BRS East ’17 * Denotes New Products
