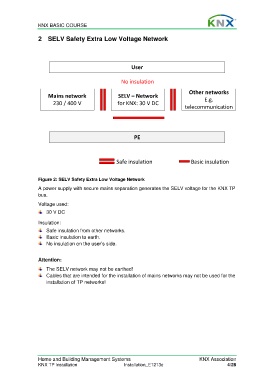

KNX BASIC COURSE
2 SELV Safety Extra Low Voltage Network
User
No insulation
Other networks
Mains network SELV – Network E.g.
230 / 400 V for KNX: 30 V DC
telecommunication
PE
Safe insulation Basic insulation
Figure 2: SELV Safety Extra Low Voltage Network
A power supply with secure mains separation generates the SELV voltage for the KNX TP
bus.
Voltage used:
30 V DC
Insulation:
Safe insulation from other networks.
Basic insulation to earth.
No insulation on the user’s side.
Attention:
The SELV network may not be earthed!
Cables that are intended for the installation of mains networks may not be used for the
installation of TP networks!
