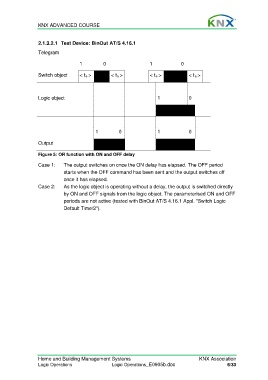

KNX ADVANCED COURSE
2.1.3.2.1 Test Device: BinOut AT/S 4.16.1
Telegram
1 0 1 0
Switch object < t e > < t a > < t e > < t a >
Logic object 1 0
1 0 1 0
Output
Figure 5: OR function with ON and OFF delay
Case 1: The output switches on once the ON delay has elapsed. The OFF period
starts when the OFF command has been sent and the output switches off
once it has elapsed.
Case 2: As the logic object is operating without a delay, the output is switched directly
by ON and OFF signals from the logic object. The parameterised ON and OFF
periods are not active (tested with BinOut AT/S 4.16.1 Appl. "Switch Logic
Default Time/2").
Home and Building Management Systems KNX Association
Logic Operations Logic Operations_E0905b.doc 6/33
