KNX ADVANCED COURSE
The connection can be implemented for example via an external interface which
translates the internal, manufacturer-specific bus into KNX via a gateway. This is not an
unusual method as a considerable number of HVAC manufacturers allow their
installations to communicate via proprietary bus systems.
A more widespread solution in this market is internal plug-in cards which function as an
extension module in the respective installation and make a connection available to KNX.
In both versions, the heating is integrated into ETS as a device.
Boiler control

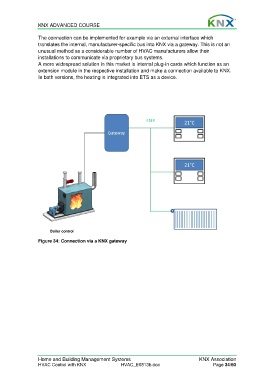

Figure 34: Connection via a KNX gateway
Home and Building Management Systems KNX Association
HVAC Control with KNX HVAC_E0813b.doc Page 34/60
