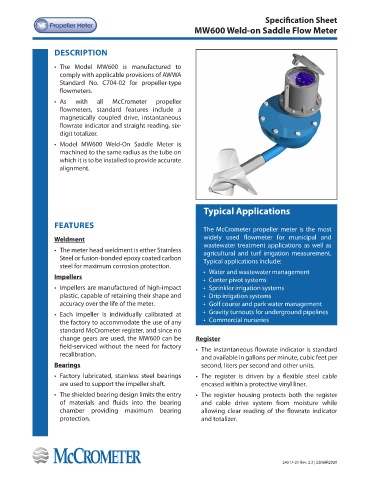

Specification Sheet
MW600 Weld-on Saddle Flow Meter

DESCRIPTION

• The Model MW600 is manufactured to
comply with applicable provisions of AWWA
Standard No. C704-02 for propeller-type
flowmeters.
• As with all McCrometer propeller
flowmeters, standard features include a
magnetically coupled drive, instantaneous
flowrate indicator and straight reading, six-
digit totalizer.
• Model MW600 Weld-On Saddle Meter is
machined to the same radius as the tube on
which it is to be installed to provide accurate
alignment.

Typical Applications

FEATURES
The McCrometer propeller meter is the most
Weldment widely used flowmeter for municipal and
wastewater treatment applications as well as
• The meter head weldment is either Stainless agricultural and turf irrigation measurement.
Steel or fusion-bonded epoxy coated carbon Typical applications include:
steel for maximum corrosion protection.
• Water and wastewater management
Impellers
• Center pivot systems
• Impellers are manufactured of high-impact • Sprinkler irrigation systems
plastic, capable of retaining their shape and • Drip irrigation systems
accuracy over the life of the meter. • Golf course and park water management
• Each impeller is individually calibrated at • Gravity turnouts for underground pipelines
the factory to accommodate the use of any • Commercial nurseries
standard McCrometer register, and since no
change gears are used, the MW600 can be Register
field-serviced without the need for factory • The instantaneous flowrate indicator is standard
recalibration. and available in gallons per minute, cubic feet per
Bearings second, liters per second and other units.

• Factory lubricated, stainless steel bearings • The register is driven by a flexible steel cable
are used to support the impeller shaft. encased within a protective vinyl liner.
• The shielded bearing design limits the entry • The register housing protects both the register
of materials and fluids into the bearing and cable drive system from moisture while
chamber providing maximum bearing allowing clear reading of the flowrate indicator
protection. and totalizer.

24517-21 Rev. 2.3 | 23MAR2020
